Removal And Installation: Installation
WARNING: This page is about a different car, the 2011 Suzuki Equator. However, it is still accessible from the selected car via links, so may be relevant.
- Operate wiper motor one full cycle, then turn "OFF" (Auto Stop).

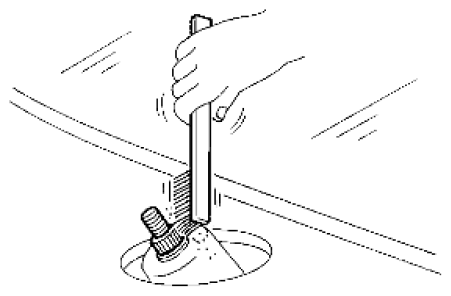

- Clean up the pivot area as shown. This will reduce possibility of wiper arm looseness.
- Install front RH blade assembly and front LH blade assembly.
- Install front RH wiper arm and front LH wiper arm.
- Ensure that wiper blades stop within proper clearance. Perform "FRONT WIPER ARM ADJUSTMENT".
- Tighten wiper arm nuts to specified torque, and install wiper arm covers. Refer to [Wiper Motor and Linkage: Removal and Installation ].
