Front Door Lock: Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki Equator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door window regulator. Refer to [FRONT DOOR GLASS REGULATOR: ON-VEHICLE REPAIR ]
Remove door side grommet, and remove door key cylinder assembly (driver side) or outside handle escutcheon (passenger side) bolts (TORX T30) from grommet hole.
CAUTION: Do not forcibly remove the TORX bolts (T30).

Fig 1: Identifying Outside Handle Escutcheon (Passenger Side) Torx Bolts And Weatherstrip
Courtesy of SUZUKI OF AMERICA CORP.

Torx bolt 5.3 N.m (0.54 kg-m, 47 in-lb)
Separate the key cylinder rod from the key cylinder assembly.
While pulling the outside handle (1), remove door key cylinder assembly or escutcheon (2).

Fig 2: Removing Door Key Cylinder Assembly Or Escutcheon
Courtesy of SUZUKI OF AMERICA CORP.
While pulling outside handle (2), slide toward rear of vehicle to remove outside handle (1).

Fig 3: Removing Outside Handle
Courtesy of SUZUKI OF AMERICA CORP.
Remove the front gasket and rear gasket.

Fig 4: Identifying Front And Rear Gasket With Pawls
Courtesy of SUZUKI OF AMERICA CORP.

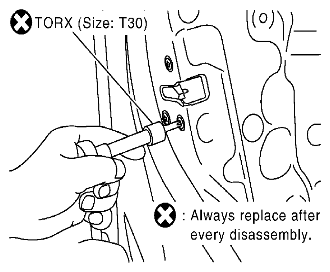

Remove the TORX bolts (T30), remove the door lock assembly.

Fig 5: Removing TORX Bolts
Courtesy of SUZUKI OF AMERICA CORP.

Door lock assembly bolts 5.8 N.m (0.59 kg-m, 51 in-lb)
While pulling outside handle bracket, slide toward rear of vehicle to remove outside handle bracket and door lock assembly.

Fig 6: Removing Outside Handle Bracket And Door Lock Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the door lock actuator connector.
Separate the outside handle cable connection from the outside handle bracket.

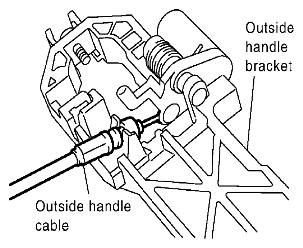

Fig 7: Identifying Outside Handle Cable And Outside Handle Bracket
Courtesy of SUZUKI OF AMERICA CORP.
