Pad Wear

WARNING: This page is about a different car, the 2011 Suzuki Equator. However, it is still accessible from the selected car via links, so may be relevant.

Check pad thickness from the inspection holes on cylinder body. Check using a scale if necessary.

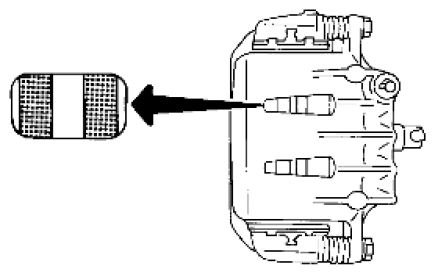

Fig 1: Identifying Front Brake Pad Thickness

Courtesy of SUZUKI OF AMERICA CORP.

Standard thickness (new): Refer to [SERVICE DATA AND SPECIFICATIONS ].

Repair limit thickness: Refer to [SERVICE DATA AND SPECIFICATIONS ].
