Brake Master Cylinder: Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2011 Suzuki Equator. However, it is still accessible from the selected car via links, so may be relevant.

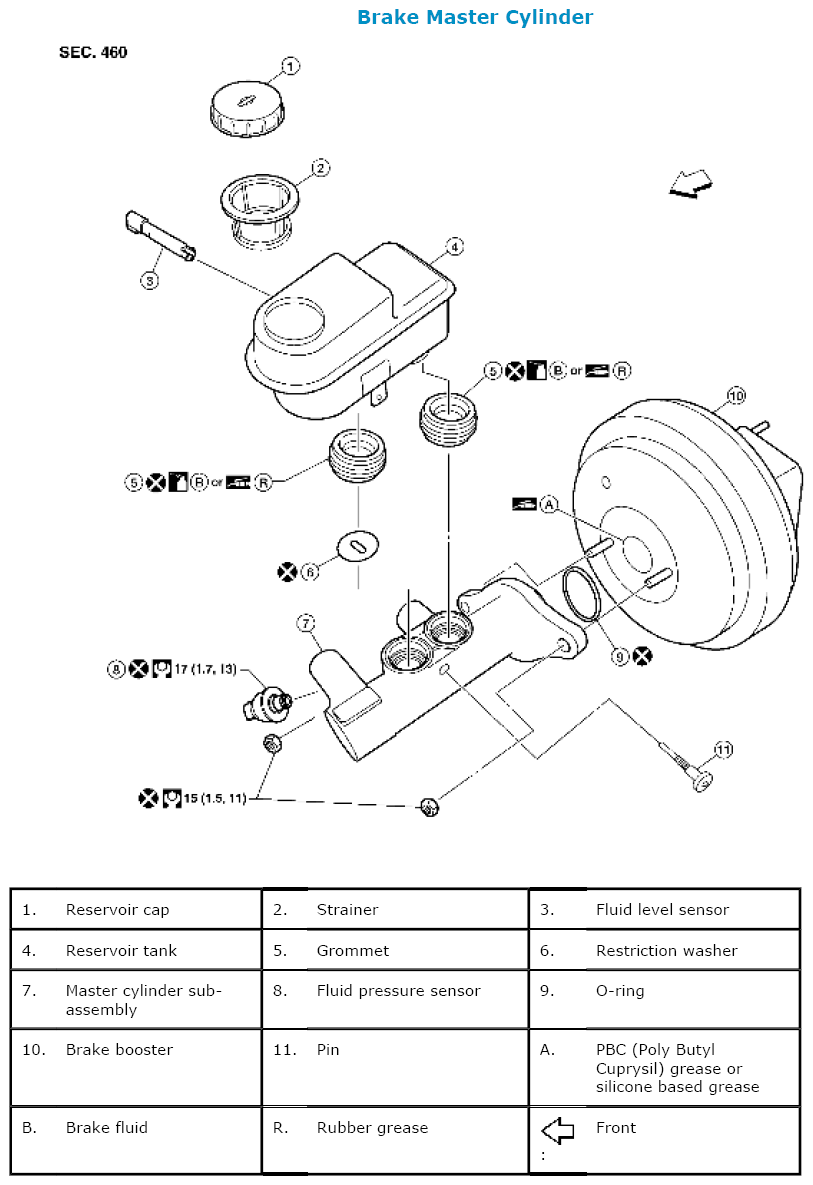

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications
G06442697Courtesy of SUZUKI OF AMERICA CORP.
