Steering Switch: Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki Equator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver air bag module. Refer to [DRIVER AIR BAG MODULE: REMOVAL AND INSTALLATION ]
  2. Remove the steering wheel audio control switch assembly screws.
  3. Disconnect the steering wheel audio control switches connector.
  4. Remove the steering wheel audio control switches by pulling on steering wheel audio control switches to release the pawls.

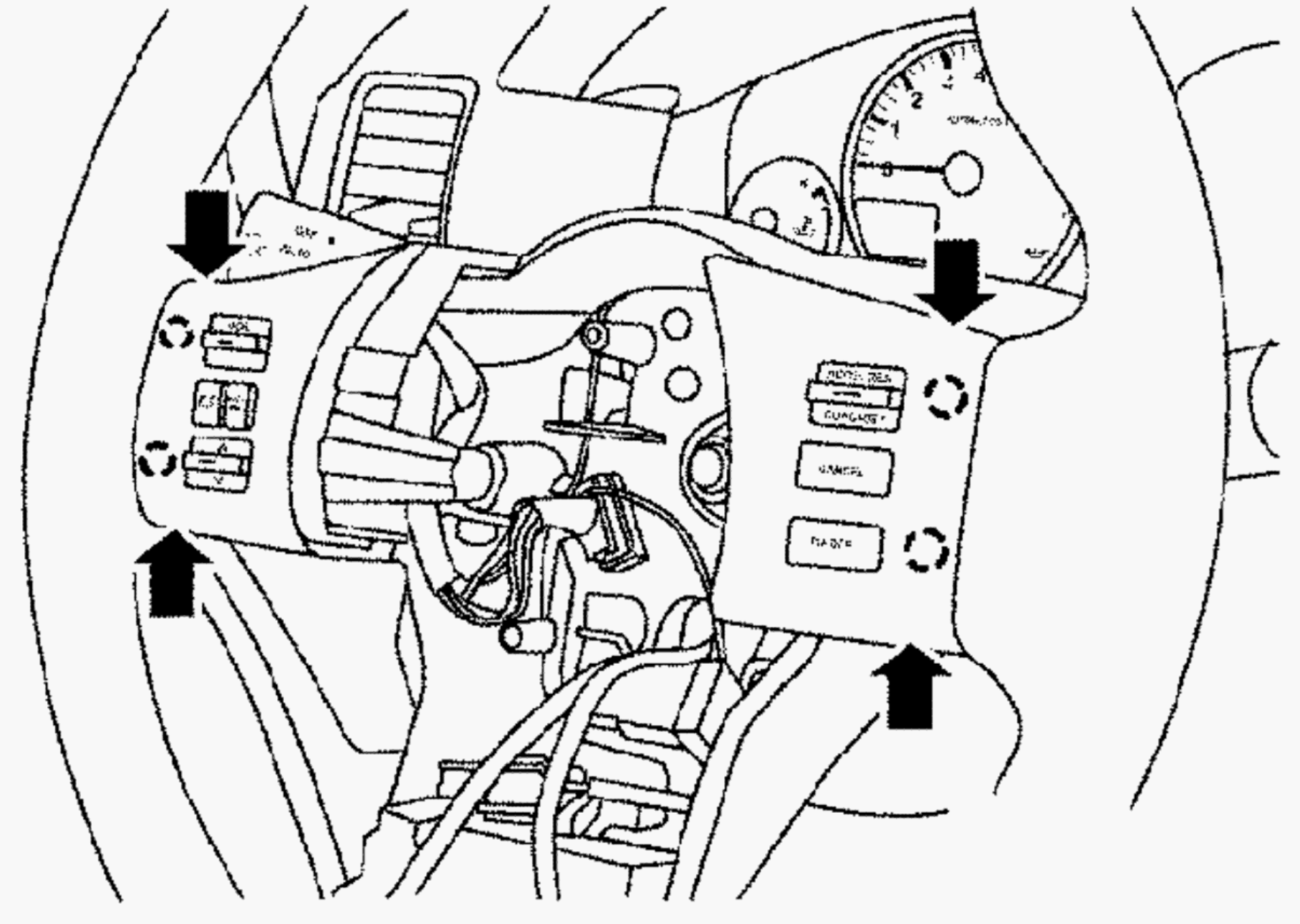

    Fig 1: Identifying Steering Wheel Audio Control Switches & Pawls
    G00517480Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Do not tilt steering wheel audio control switches during removal or damage may occur to the pawls.
