Audio Unit: Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki Equator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cluster lid C. Refer to [CLUSTER LID C: REMOVAL AND INSTALLATION ]
Remove the center ventilator ducts. Refer to [DUCTS AND GRILLES: REMOVAL AND INSTALLATION ]
Remove the audio unit control screws (A), then remove the audio unit assembly, from cluster lid C.

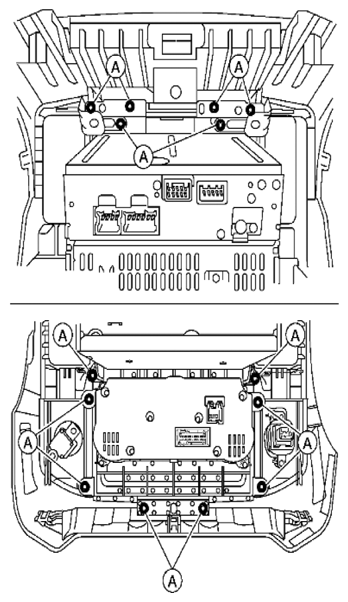

Fig 1: Identifying Audio Unit Control Screws
Courtesy of SUZUKI OF AMERICA CORP.
Remove the audio unit screws (A), using power tool.

Fig 2: Identifying Audio Unit, Audio Controls, Audio Unit Screws And Audio Unit Brackets
Courtesy of SUZUKI OF AMERICA CORP.
Remove the audio unit brackets (2), then pull out the audio unit (3) from the audio control panel (1).
