Audio Antenna: Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki Equator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lower glove box. Refer to [INSTRUMENT LOWER PANEL RH AND GLOVE BOX: REMOVAL AND INSTALLATION ]
  2. Disconnect audio antenna cable from antenna feeder.
  3. Remove antenna rod.

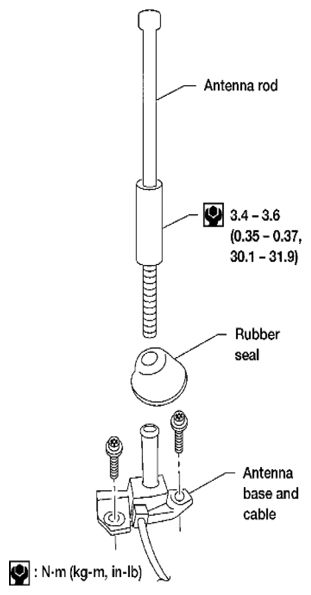

    Fig 1: Identifying Antenna Rod, Rubber Seal, Antenna Base And Cable
    G06445433Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove rubber seal.
  5. Remove cowl top. Refer to [COWL TOP: REMOVAL AND INSTALLATION ]
  6. Remove fender protector. Refer to [FRONT FENDER PROTECTOR: REMOVAL AND INSTALLATION ]
  7. Remove antenna base bolts.
  8. Remove antenna base and cable.
