Cargo Lamp Relay

WARNING: This page is about a different car, the 2011 Suzuki Equator. However, it is still accessible from the selected car via links, so may be relevant.
Cargo Lamp Relay Chart

Step Action YES NO
1

CHECK CARGO LAMP RELAY

  1. Turn ignition switch OFF.

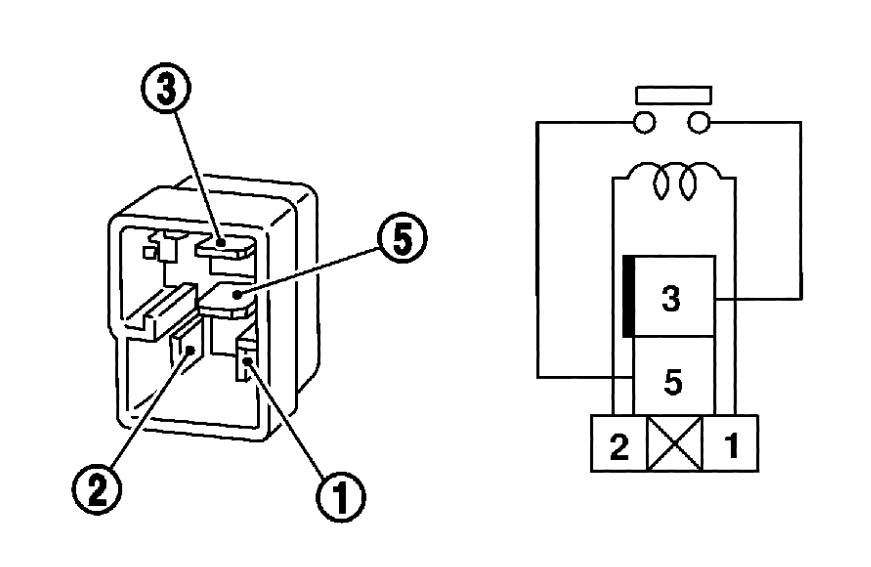

    Fig 1: Ignition Relay Diagram
    G00491408Courtesy of SUZUKI OF AMERICA CORP.
  2. Disconnect cargo lamp relay connector.
  3. Supply power to terminal 2 and ground to terminal 1 of the cargo lamp relay.
  4. Check continuity between cargo lamp relay terminals 3 and 5.
    Fig 2: Cargo Lamp Switch Terminal Chart
    G00491410Courtesy of SUZUKI OF AMERICA CORP.
  5. Is the inspection result normal?

Inspection End Replace cargo lamp relay.
