Cargo Lamp Switch

WARNING: This page is about a different car, the 2011 Suzuki Equator. However, it is still accessible from the selected car via links, so may be relevant.

DIAGNOSIS PROCEDURE CHART

Step	Action	YES	NO
1	CHECK CARGO LAMP SWITCH Turn ignition switch OFF. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 2. Disconnect cargo lamp switch connector. 3. Check continuity between cargo lamp switch terminals 1 and 3. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. Is the inspection result normal?	Inspection End	Replace cargo lamp switch.

Step

Action

YES

CHECK CARGO LAMP SWITCH

Turn ignition switch OFF.

Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

2. Disconnect cargo lamp switch connector.

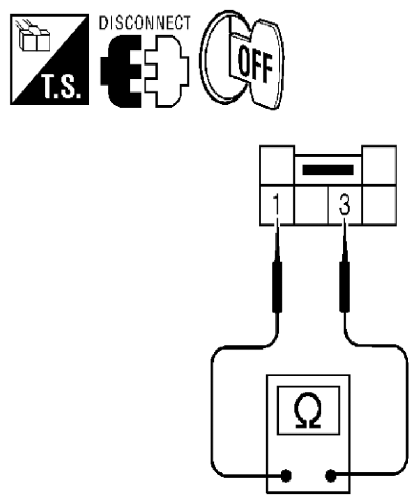

3. Check continuity between cargo lamp switch terminals 1 and 3.

Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

Is the inspection result normal?

Inspection End

Replace cargo lamp switch.
