DTC P0327: Knock Sensor 1 Circuit Low; P0328: Knock Sensor 1 Circuit High: Wiring Diagram

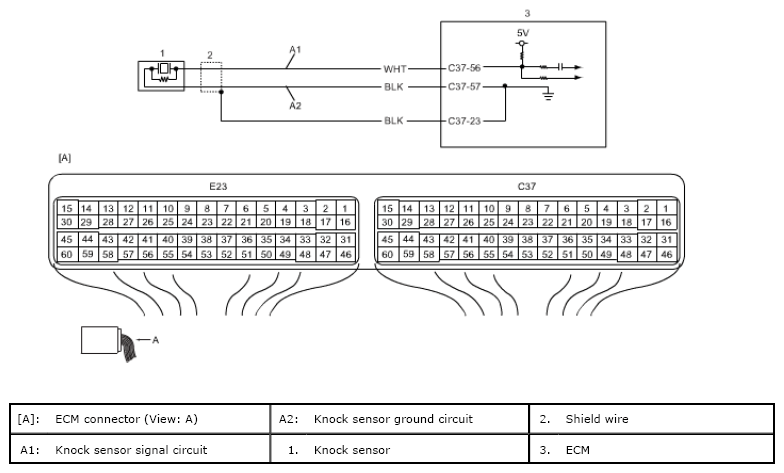

Fig 1: Knock Sensor - Wiring Diagram
G06492358Courtesy of SUZUKI OF AMERICA CORP.
