DTC P0037: HO2S Heater Control Circuit Low (Bank-1 Sensor-2); DTC P0038: HO2S Heater Control Circuit High (Bank-1 Sensor-2): Wiring Diagram

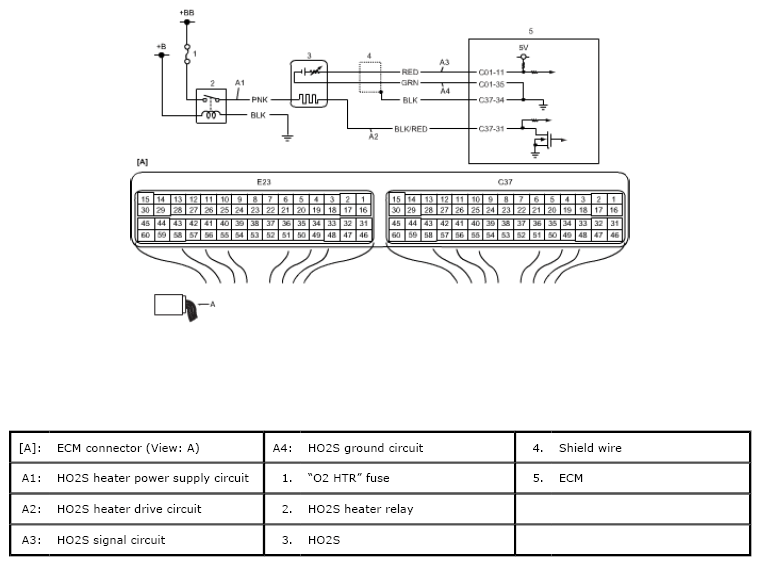

Fig 1: HO2S Heater Control Circuit High And Low (Bank-1 Sensor-2) - Wiring Diagram
G06492353Courtesy of SUZUKI OF AMERICA CORP.
