DTC P0031: HO2S Heater Control Circuit Low (Bank-1 Sensor-1); DTC P0032: HO2S Heater Control Circuit High (Bank-1 Sensor-1): Wiring Diagram

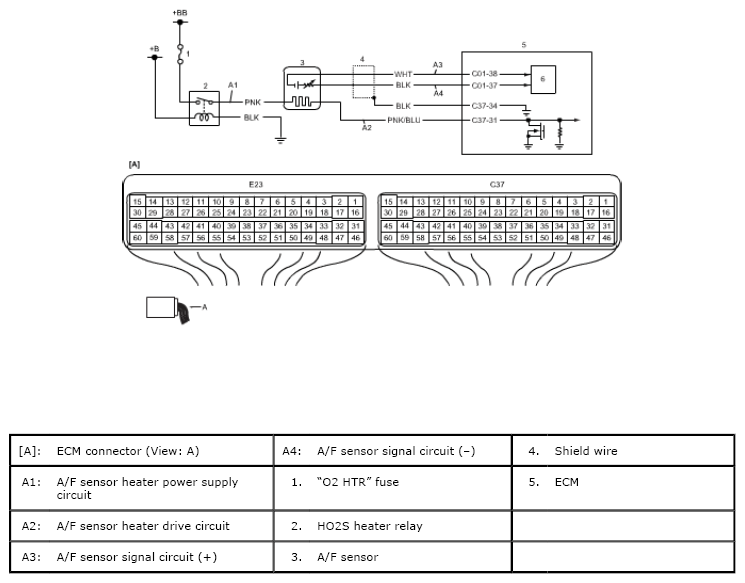

Fig 1: HO2S Heater Control Circuit High And Low (Bank-1 Sensor-1) - Wiring Diagram
G06492352Courtesy of SUZUKI OF AMERICA CORP.
