DTC P0010: Camshaft Position Actuator Circuit: Wiring Diagram

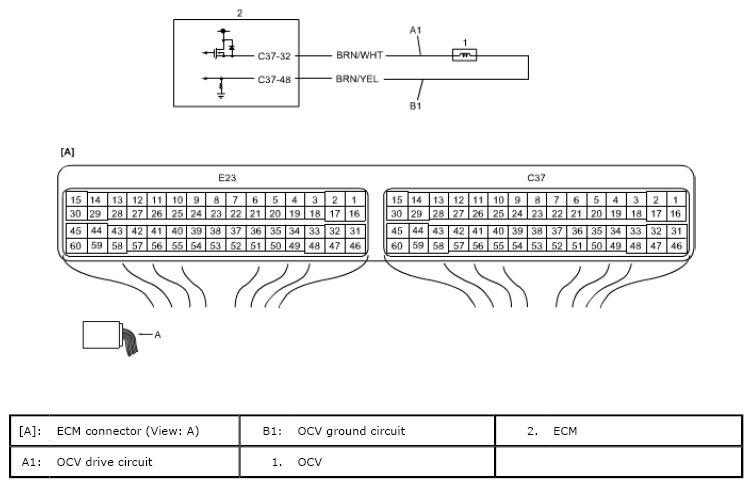

Fig 1: Camshaft Position Actuator - Wiring Diagram
G06492350Courtesy of SUZUKI OF AMERICA CORP.
