Fuel Pump Assembly Removal and Installation: Removal

Remove fuel tank from vehicle. See FUEL TANK REMOVAL AND INSTALLATION .
Disconnect fuel feed pipe (2) and fuel pump/fuel level sensor connector (3) from fuel pump assembly (1). See FUEL HOSE DISCONNECTING AND RECONNECTING .
Remove fuel pump nuts (4).

Fig 1: Identifying Fuel Feed Pipe And Fuel Level Sensor Connector
Courtesy of SUZUKI OF AMERICA CORP.
Lift up fuel pump (1) and disconnect fuel suction hose (2) from fuel pump assembly. See FUEL HOSE DISCONNECTING AND RECONNECTING .

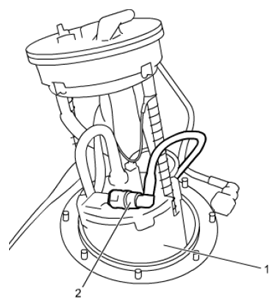

Fig 2: Identifying Fuel Suction Hose And Fuel Pump Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove fuel pump assembly from fuel tank.
