Fuel Pump and Its Circuit Check: Wiring Diagram

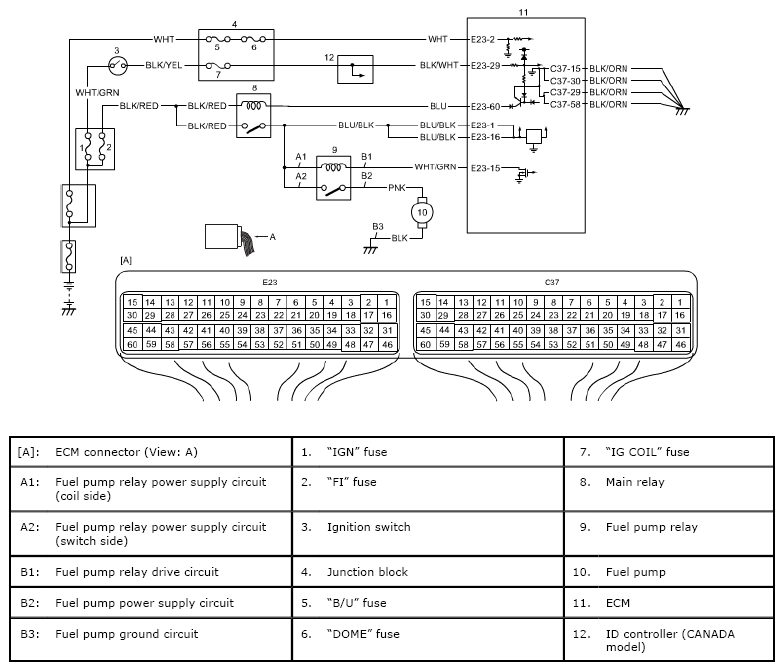

Fig 1: Fuel Pump - Wiring Diagram

G06493384

Courtesy of SUZUKI OF AMERICA CORP.
