Fuel Injector Circuit Check: Wiring Diagram

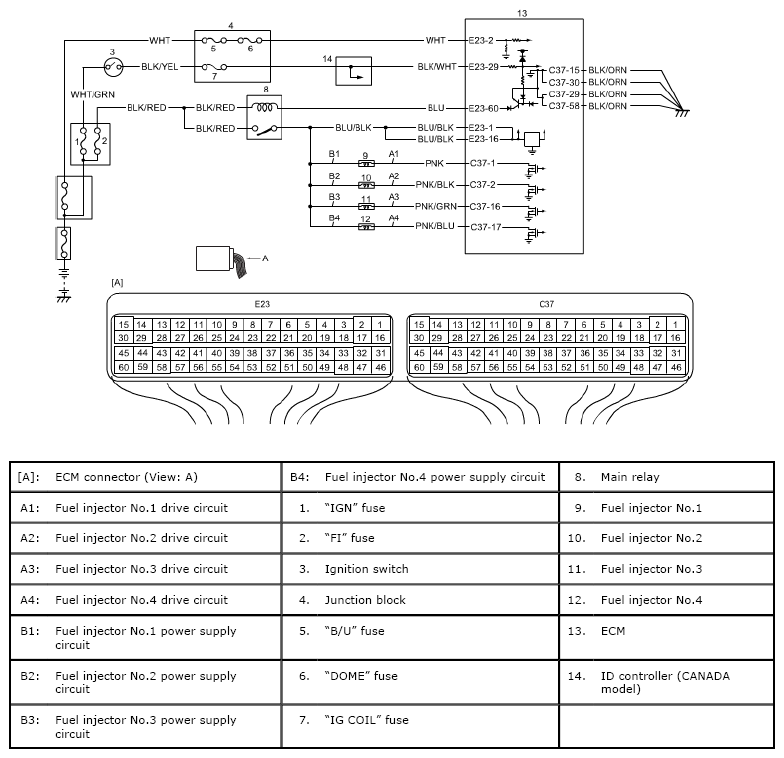

Fig 1: Fuel Injector Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
