Balancer Shaft Removal and Installation: Removal: Installation
Reference: BALANCER SHAFT, BALANCER BEARING INSPECTION
- If removed, install shaft balancer bearings according to the following procedure.CAUTION:
- Balancer shaft bearing No. 1 is different in shape from bearing No. 2. Bearing No. 1 is narrower in width than bearing No. 2.
- Do not apply engine oil to the following surfaces.
- Both contact surfaces (5) of balancer shaft bearing and oil pump housing.
- Both contact surfaces (5) of balancer shaft bearing and balancer shaft cover.
- Fit tab (1) of each balancer shaft bearing to groove (2) of oil pump housing or balancer shaft cover.
- Press balancer shaft bearing end (3) until its outer surface comes in contact with oil pump housing or balancer shaft cover.
- Apply engine oil to inner surface (4) of balancer shaft bearing.
- Install balancer shafts No. 1 and No. 2 to oil pump housing according to the following procedure.
- Align match marks (1) on balancer gear No. 1 with match mark (2) on balancer gear No. 2 as shown in figure.

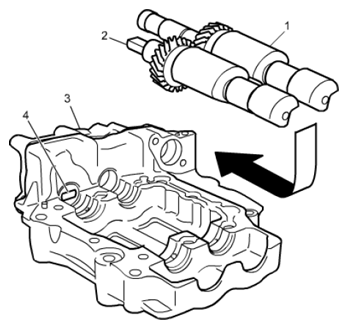

- Install balancer shafts No. 1 (1) and No. 2 (2) to oil pump housing (3) by sliding them in direction of arrow.NOTE: Fit end of balancer shaft No. 2 in hole in inner rotor opening (4).
- Install oil pump sprocket according to the following procedure.
- Insert special tool into aligning holes in balancer shafts No. 1 and No. 2 to prevent balancer shafts from rotating.
Special Tool
(A): 09914-67810
- Install oil pump sprocket (2) while holding by special tool in position.CAUTION: Be sure to use new oil pump sprocket bolt (3) with pre-coated adhesive. Otherwise, bolts may loosen.
Tightening torque
Oil pump sprocket bolt (a): 45 N.m (4.6 kg-m, 33.5 lbf-ft)
- Insert special tool into aligning holes in balancer shafts No. 1 and No. 2 to prevent balancer shafts from rotating.
- Install balancer shaft cover to oil pump housing.
Tightening torque
Balancer shaft cover bolt: 29 N.m (3.0 kg-m, 21.5 lbf-ft)
- Install oil pump assembly. See OIL PUMP ASSEMBLY REMOVAL AND INSTALLATION .
