Cooling System Refilling

Reference: COOLING SYSTEM FLUSHING

1. Fill reservoir (1) with coolant up to "FULL" level mark (3).
2. Install reservoir cap (2) on reservoir (1).

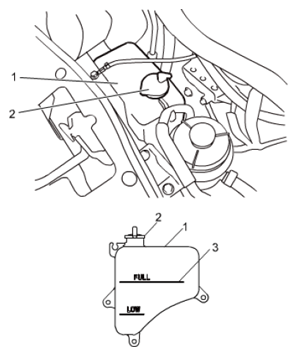

   Fig 1: Identifying Coolant Level On Reservoir

   Courtesy of SUZUKI OF AMERICA CORP.
3. Fill radiator with coolant up to bottom of radiator filler neck (1) and install radiator cap. See RADIATOR CAP REMOVAL AND INSTALLATION .

   Coolant specification

   Freezing temperature: -36 °C (-33 °F)

   Antifreeze/anti-corrosion coolant concentration: 50%

   Coolant capacity

   Engine, radiator and heater (5 M/T model): 6.6 liters (13.95/11.61 US/Imp pt.)

   Engine, radiator and heater (4 A/T model): 6.5 liters (13.74/11.44 US/Imp pt.)

   Reservoir: 0.7 liters (1.48/1.23 US/Imp pt.)

   Total (5 M/T model): 7.3 liters (15.43/12.85 US/Imp pt.)

   Total (4 A/T model): 7.2 liters (15.22/12.67 US/Imp pt.)

   Fig 2: Identifying Radiator Filler Neck

   Courtesy of SUZUKI OF AMERICA CORP.
4. Run engine at idle speed.
5. Run engine until radiator fan motor is operated.
6. Stop engine and wait until engine comes cooled down to avoid getting burned.
7. Add coolant to radiator up to bottom of radiator filler neck, and install radiator cap. See RADIATOR CAP REMOVAL AND INSTALLATION .
8. Repeat Step 4) through 7).
9. Confirm that coolant level in reservoir is at "FULL" level mark. If coolant is insufficient, add coolant.
10. Check for coolant leaks, see ENGINE COOLING SYSTEM INSPECTION .
