Radiator Cooling Fan Control System Check: Wiring Diagram

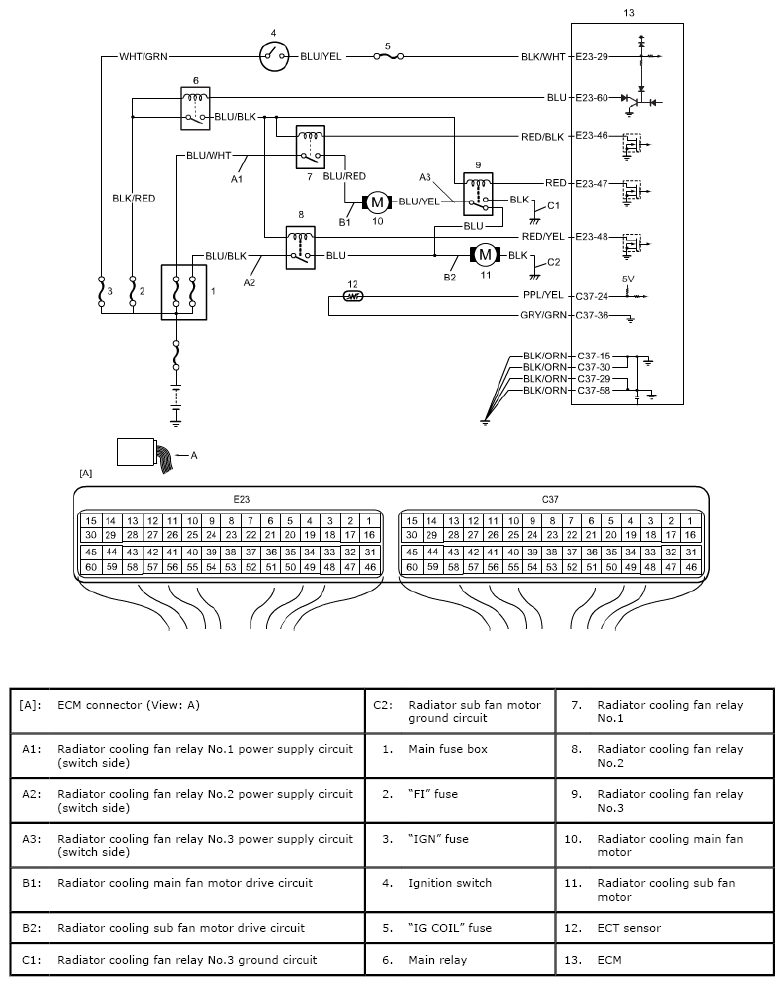

Fig 1: Radiator Cooling Fan Control System Check - Wiring Diagram
G06493315Courtesy of SUZUKI OF AMERICA CORP.
