G-2 Multi Information Display/Accessory Socket System Circuit Diagram

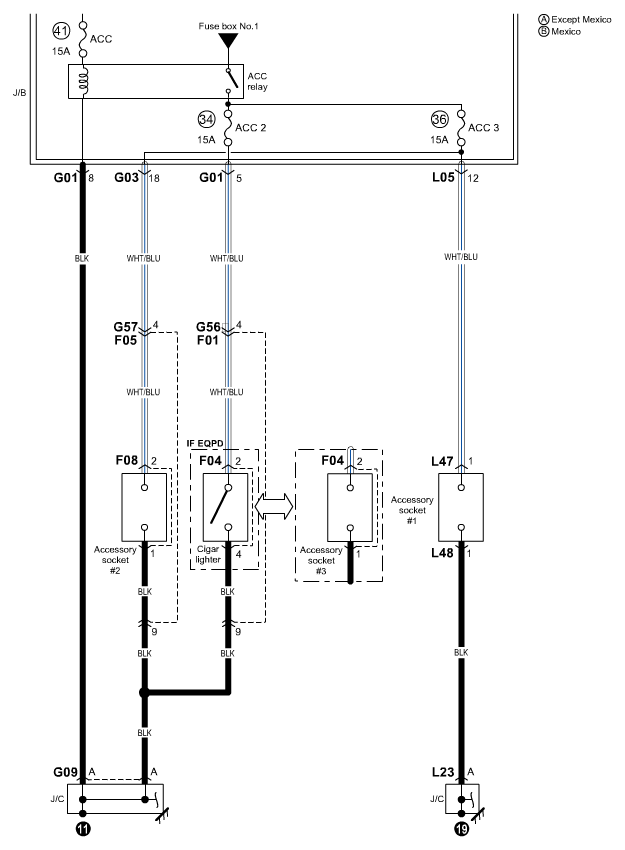

Fig 1: Multi Information Display And Accessory Socket System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
