F-1 Air-Bag System Circuit Diagram (10ch)

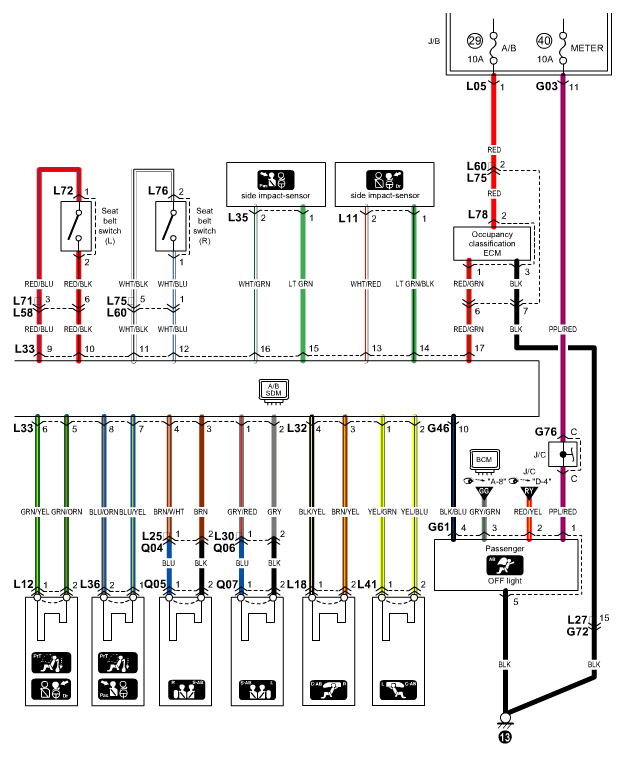

Fig 1: Air-Bag System Circuit Diagram (10ch) (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

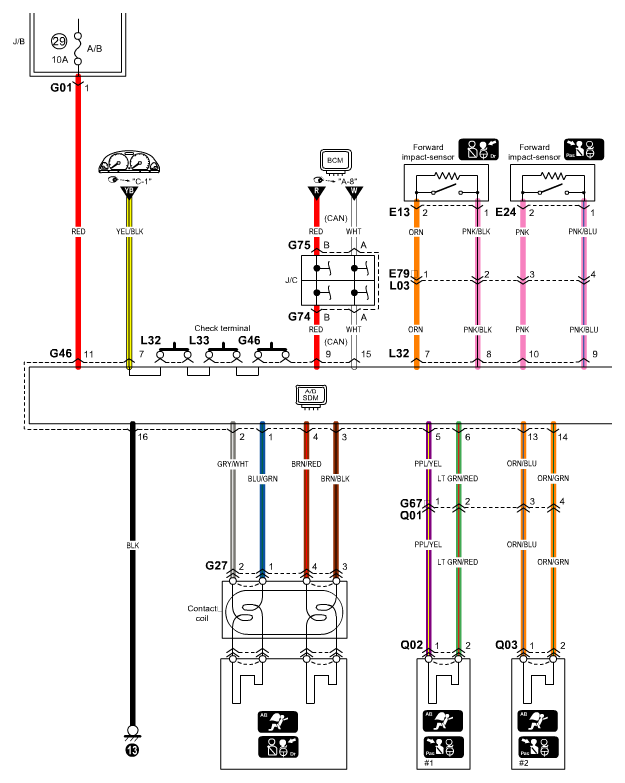

Fig 2: Air-Bag System Circuit Diagram (10ch) (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
