E-2 Auto A/C System Circuit Diagram

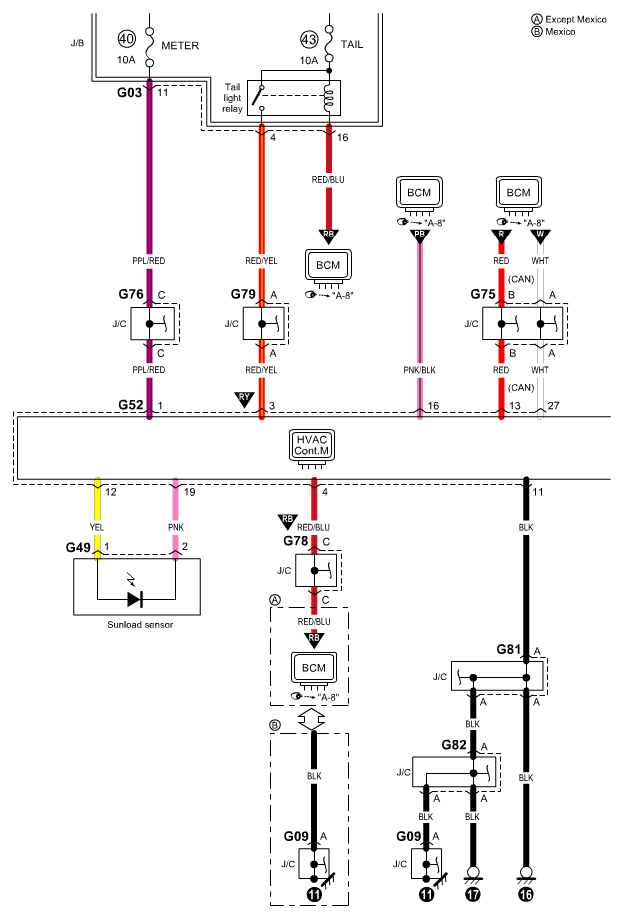

Fig 1: Auto A/C System Circuit Diagram (1 Of 2)
G06499705Courtesy of SUZUKI OF AMERICA CORP.

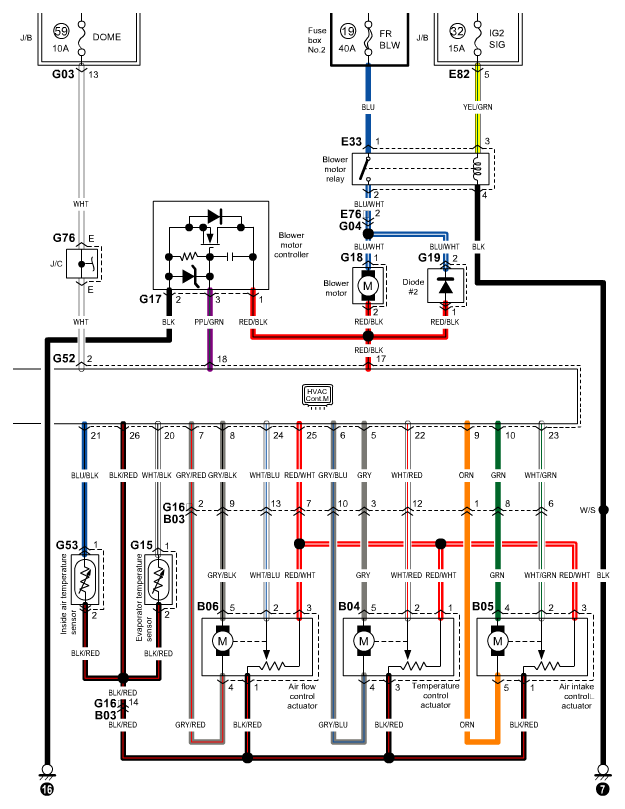

Fig 2: Auto A/C System Circuit Diagram (2 Of 2)
G06499706Courtesy of SUZUKI OF AMERICA CORP.
