D-9 Head Light Leveling System Circuit Diagram (Manual leveling)

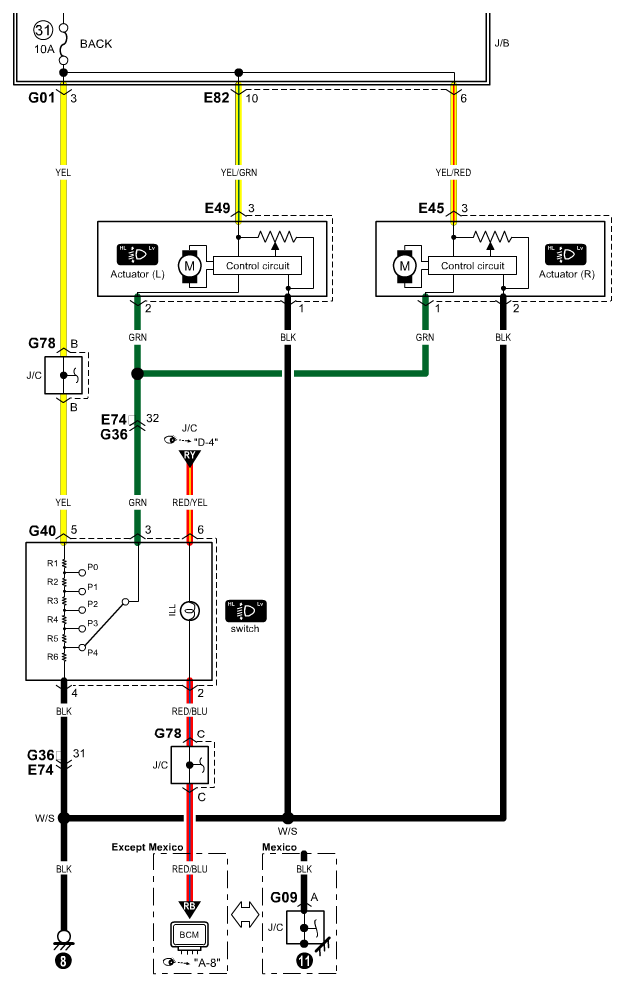

Fig 1: Head Light Leveling System Circuit Diagram (Manual Leveling)
G06499703Courtesy of SUZUKI OF AMERICA CORP.
