D-6 Turn Signal and Hazard Warning Light System Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
D-6 Turn Signal and Hazard Warning Light System Circuit Diagram

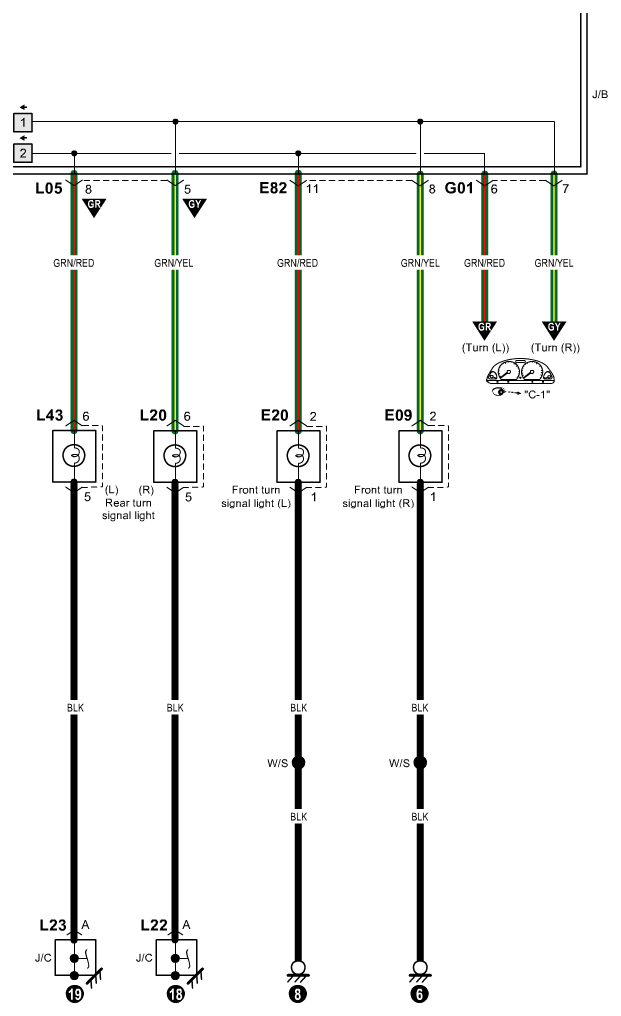

Fig 1: Turn Signal And Hazard Warning Light System Circuit Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

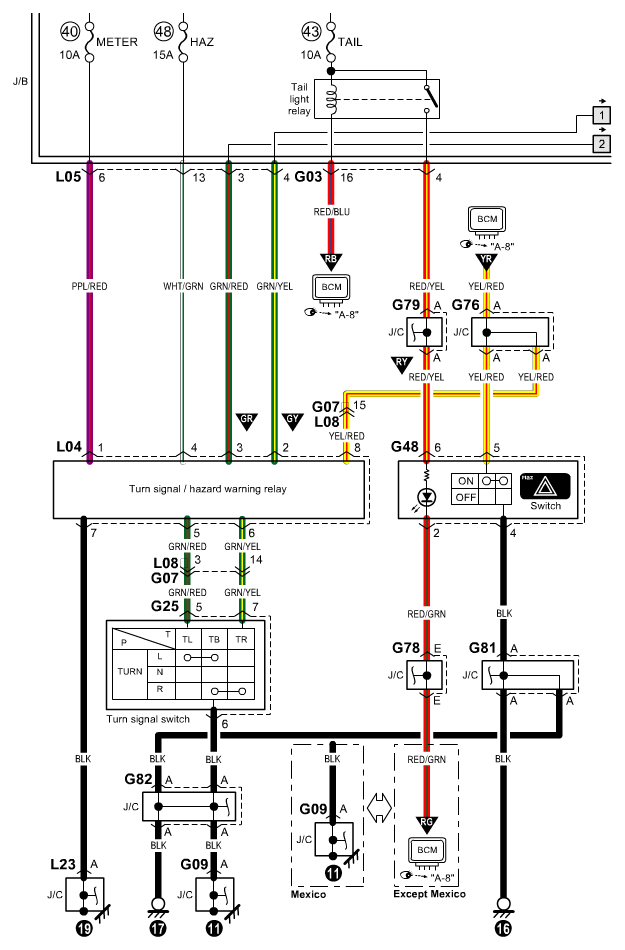

Fig 2: Turn Signal And Hazard Warning Light System Circuit Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
