D-1 Head Light System Circuit Diagram (With Projector light)

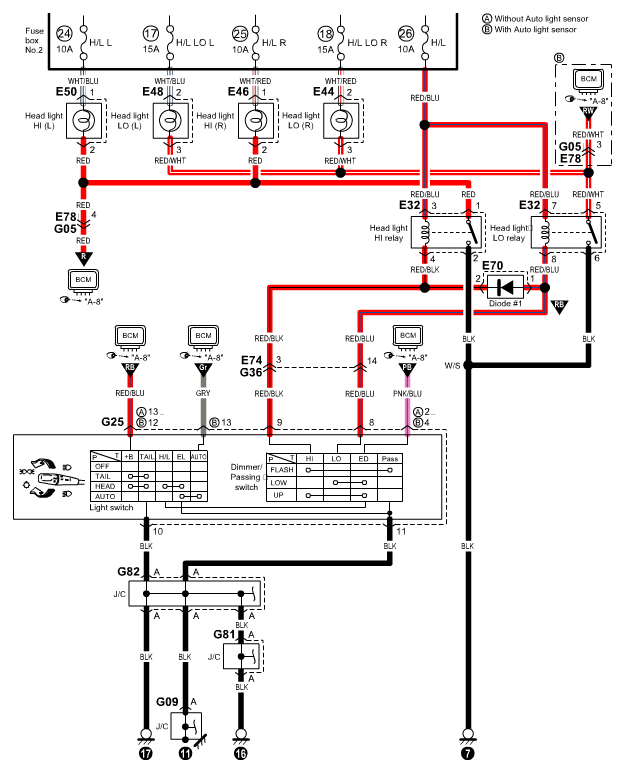

Fig 1: Head Light System Circuit Diagram (With Projector Light)
G06499693Courtesy of SUZUKI OF AMERICA CORP.
