C-1 Combination Meter Circuit Diagram

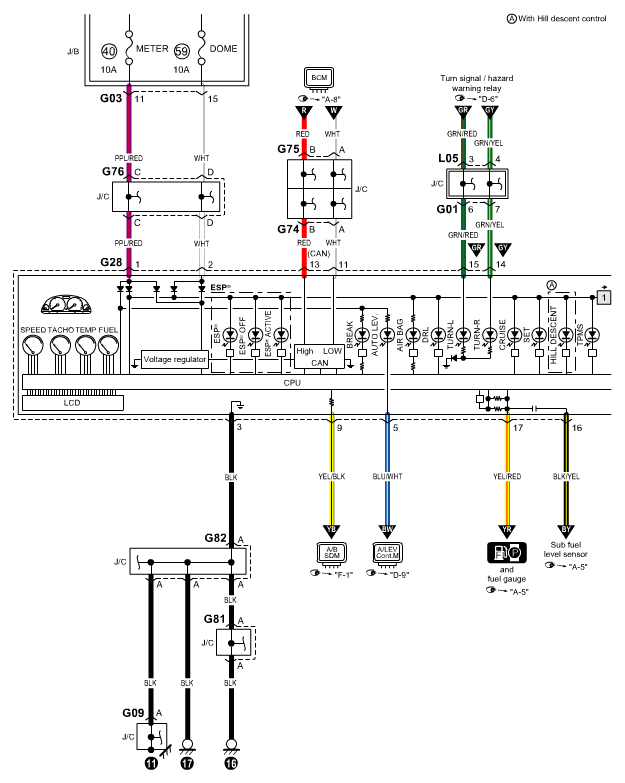

Fig 1: Combination Meter Circuit Diagram (1 Of 2)
G06499691Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Combination Meter Circuit Diagram (2 Of 2)
G06499692Courtesy of SUZUKI OF AMERICA CORP.
