B-6 Power Mirror Circuit Diagram

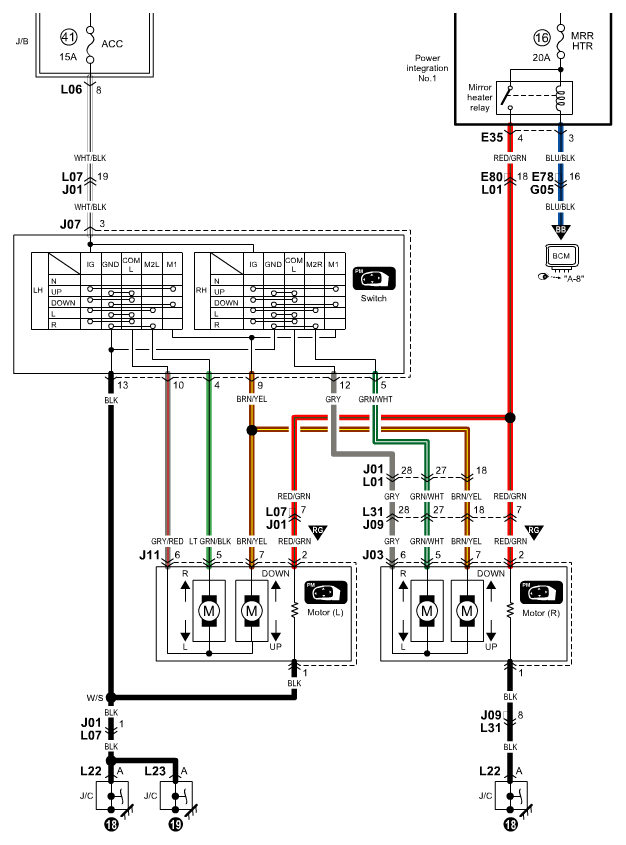

Fig 1: Power Mirror Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
