B-11 Head Light Washer Circuit Diagram

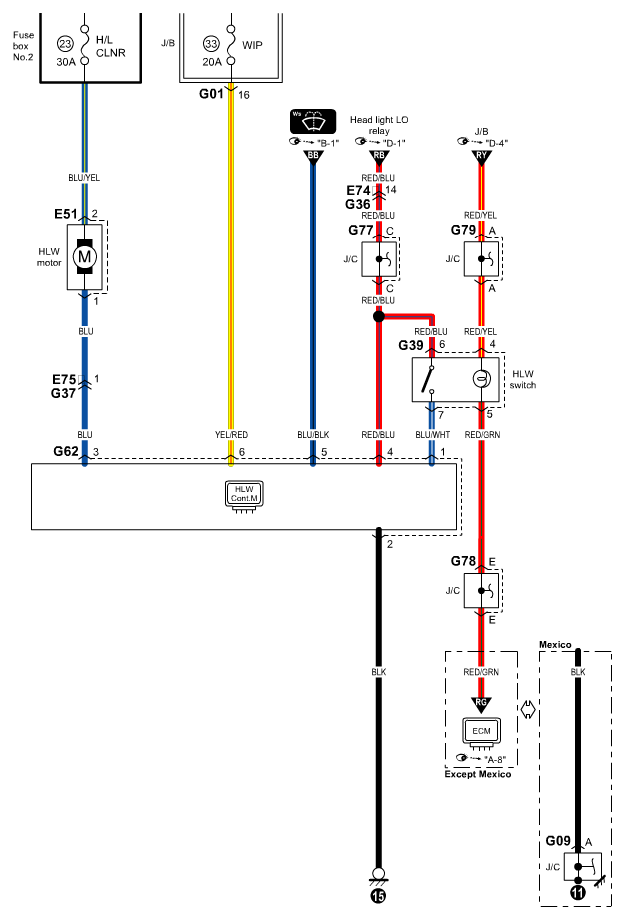

Fig 1: Head Light Washer Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
