A-5 Engine and A/C Control System Circuit Diagram

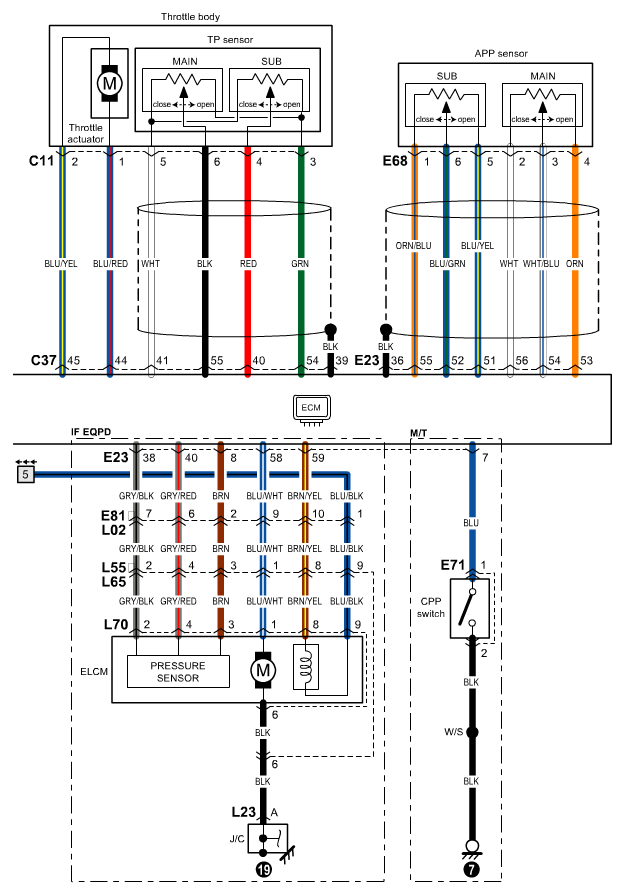

Fig 1: Engine And A/C Control System Circuit Diagram - J24B (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

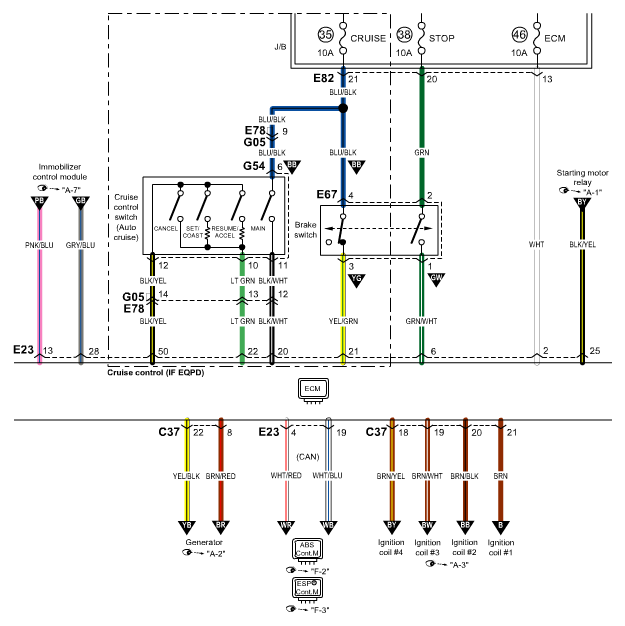

Fig 2: Engine And A/C Control System Circuit Diagram - J24B (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

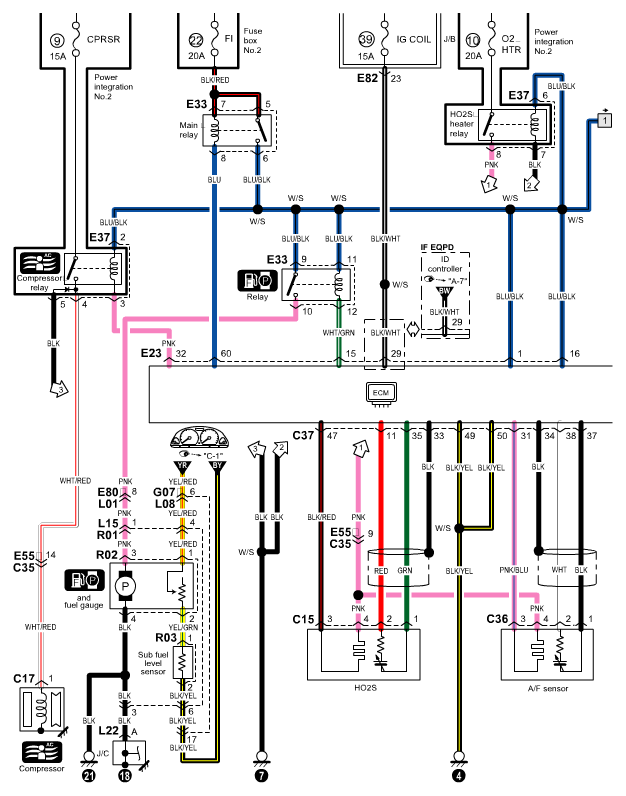

Fig 3: Engine And A/C Control System Circuit Diagram - J24B (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

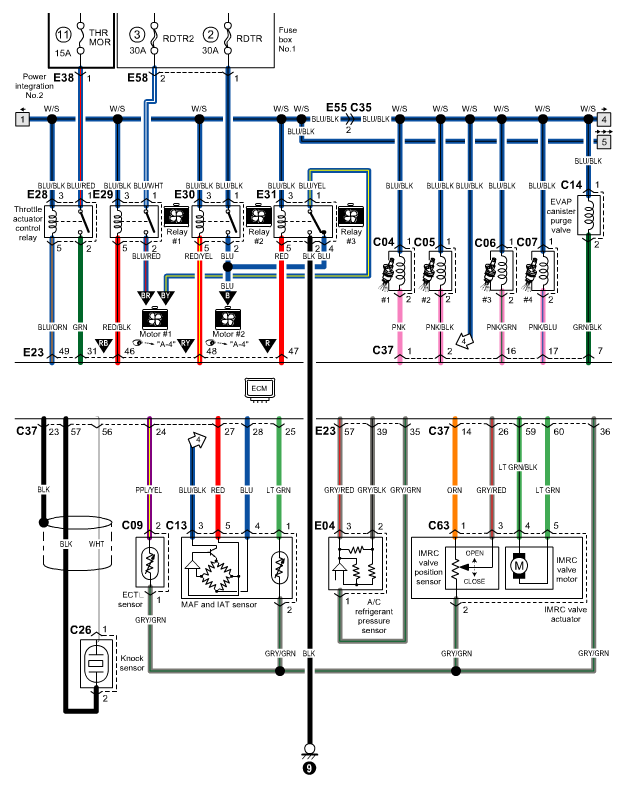

Fig 4: Engine And A/C Control System Circuit Diagram - J24B (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

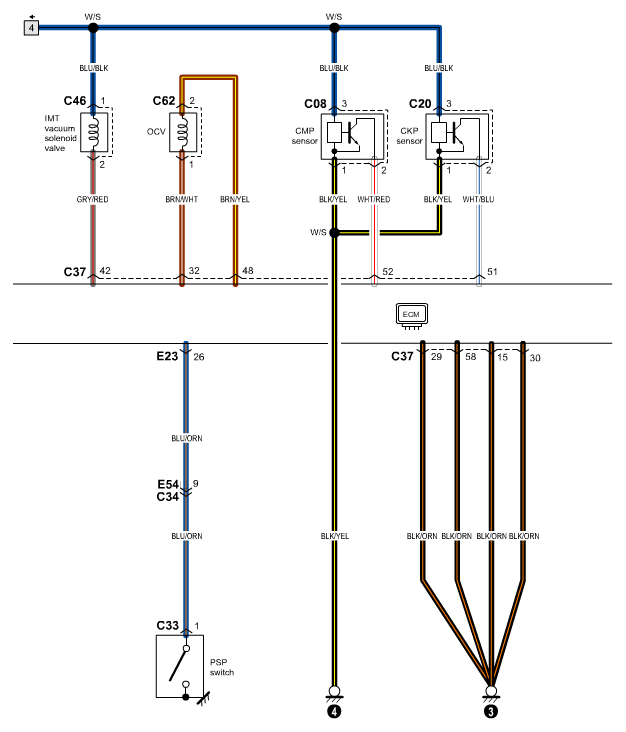

Fig 5: Engine And A/C Control System Circuit Diagram - J24B (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
