Reassembling Note for Wiring Harness
>>
Around Battery
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Around Battery

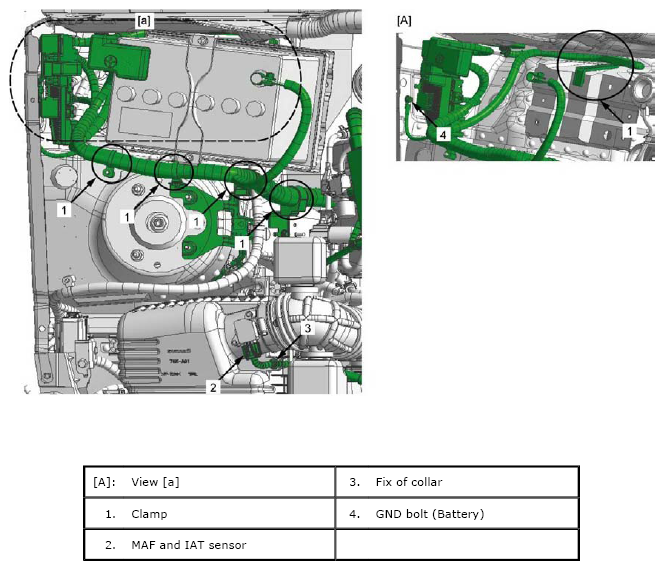

Fig 1: Identifying Engine Harness Connector - Battery
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
