Junction Block Inner Circuit (Detail)

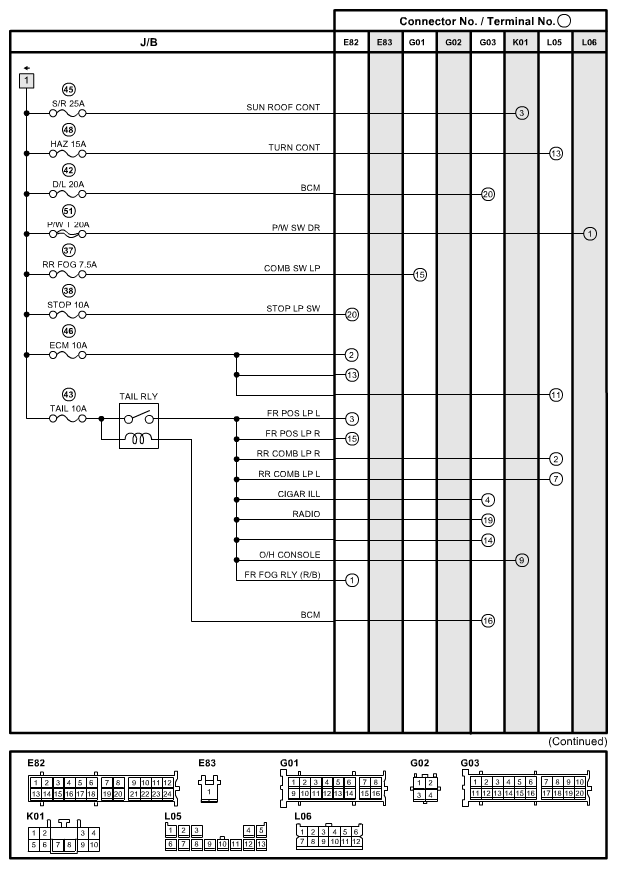

Fig 1: Junction Block Inner Circuit Diagram - Detail (1 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

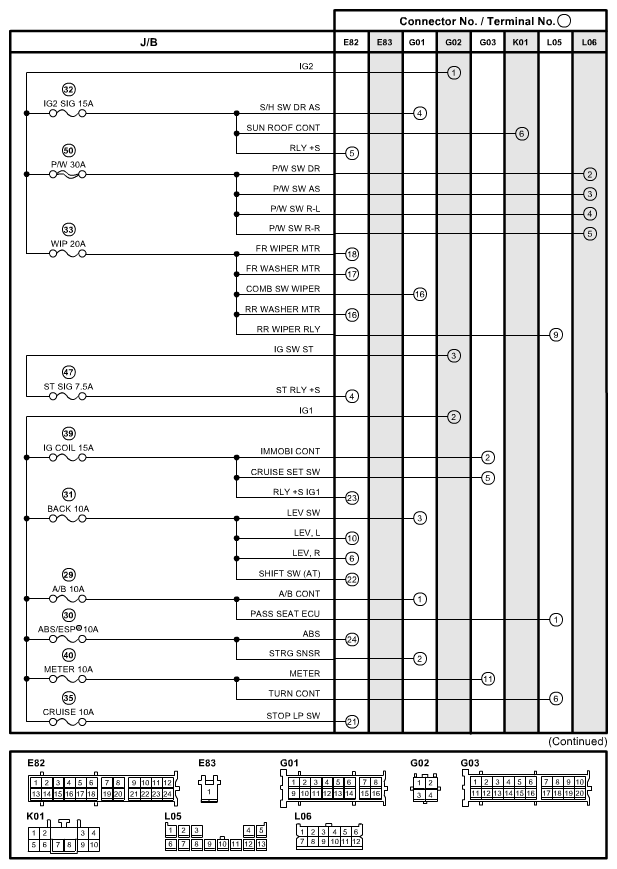

Fig 2: Junction Block Inner Circuit Diagram - Detail (2 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

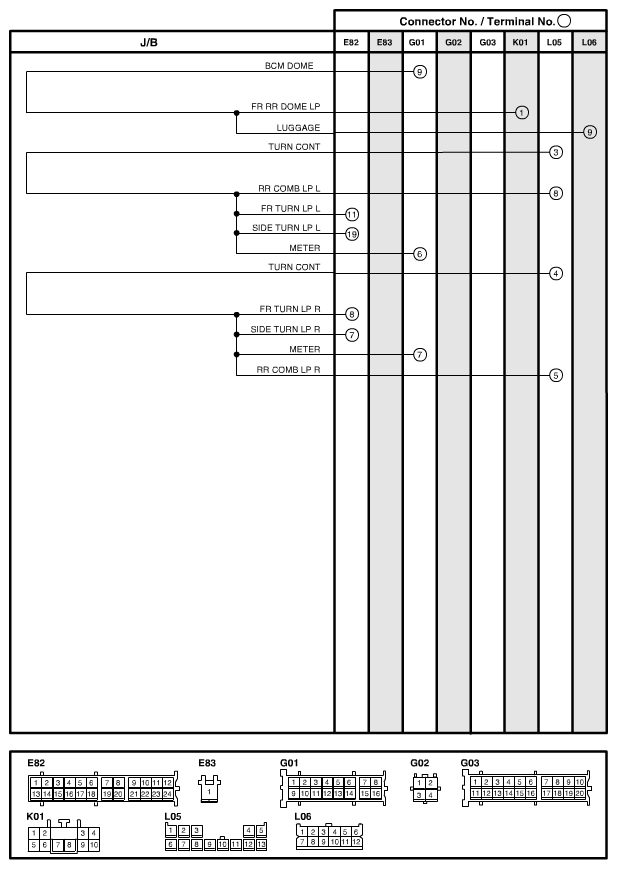

Fig 3: Junction Block Inner Circuit Diagram - Detail (3 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

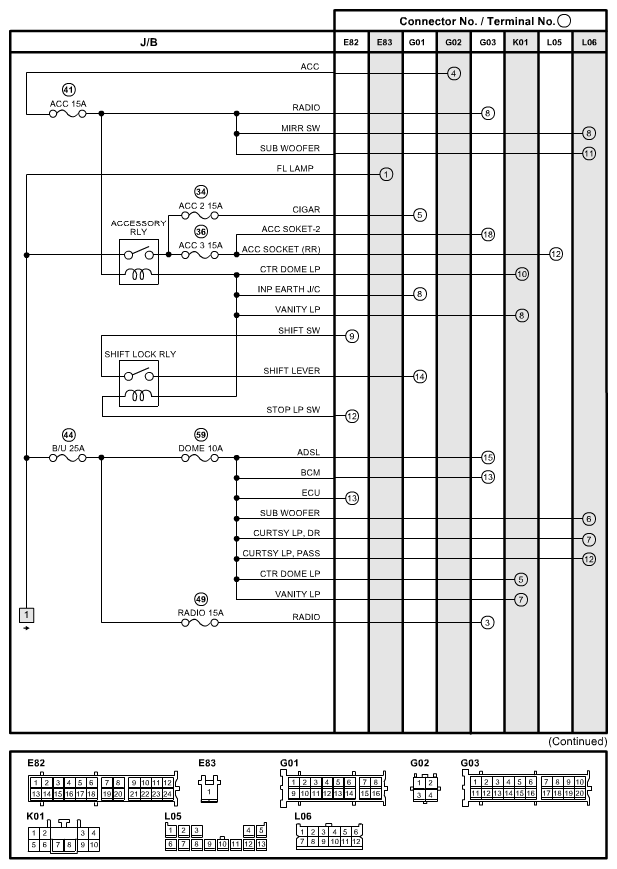

Fig 4: Junction Block Inner Circuit Diagram - Detail (4 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.
