Fuse side

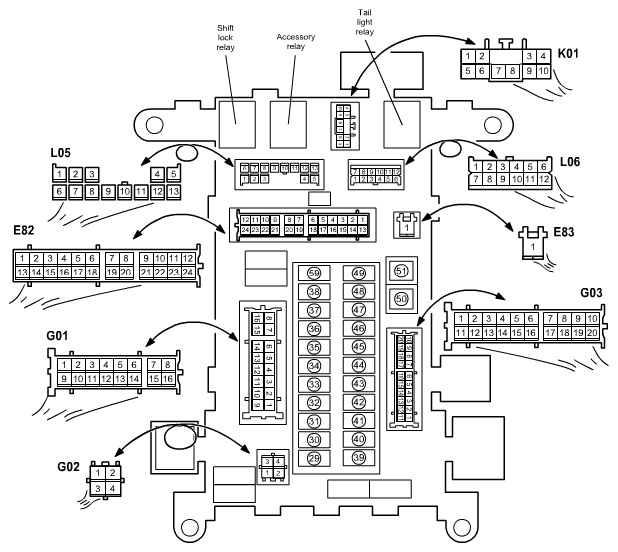

Fig 1: Identifying Junction Block Connector Layout And Relays
G06499643Courtesy of SUZUKI OF AMERICA CORP.
JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Shift Lock Relay
Accessory Relay
Tail Light Relay
