L Connector

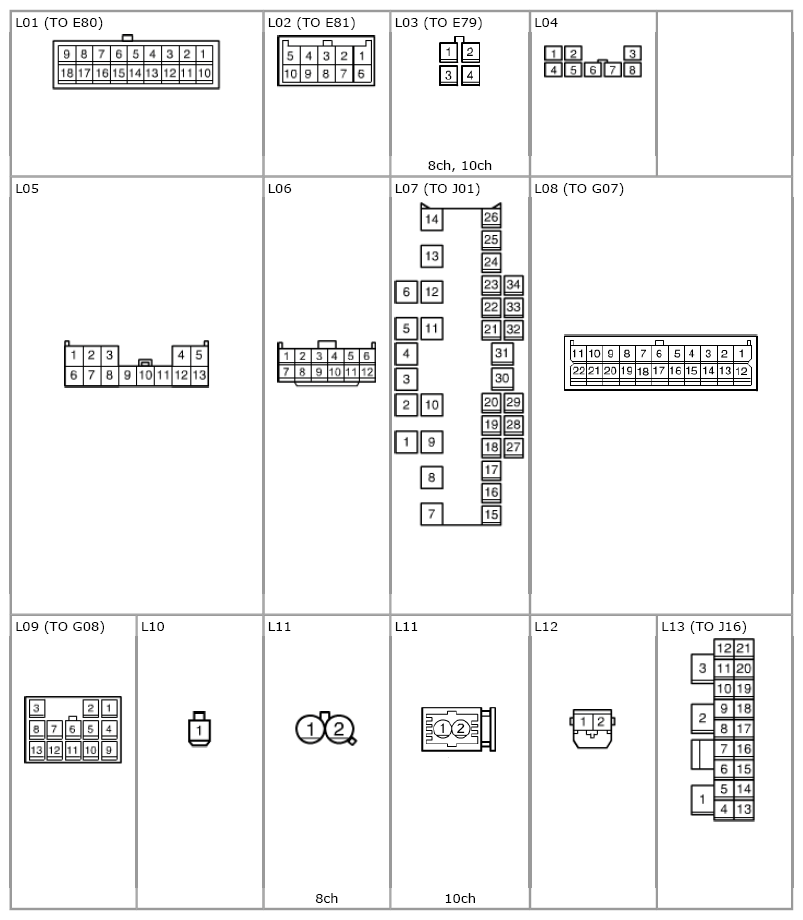

Fig 1: L Connector Chart (1 Of 3)
G06499736Courtesy of SUZUKI OF AMERICA CORP.

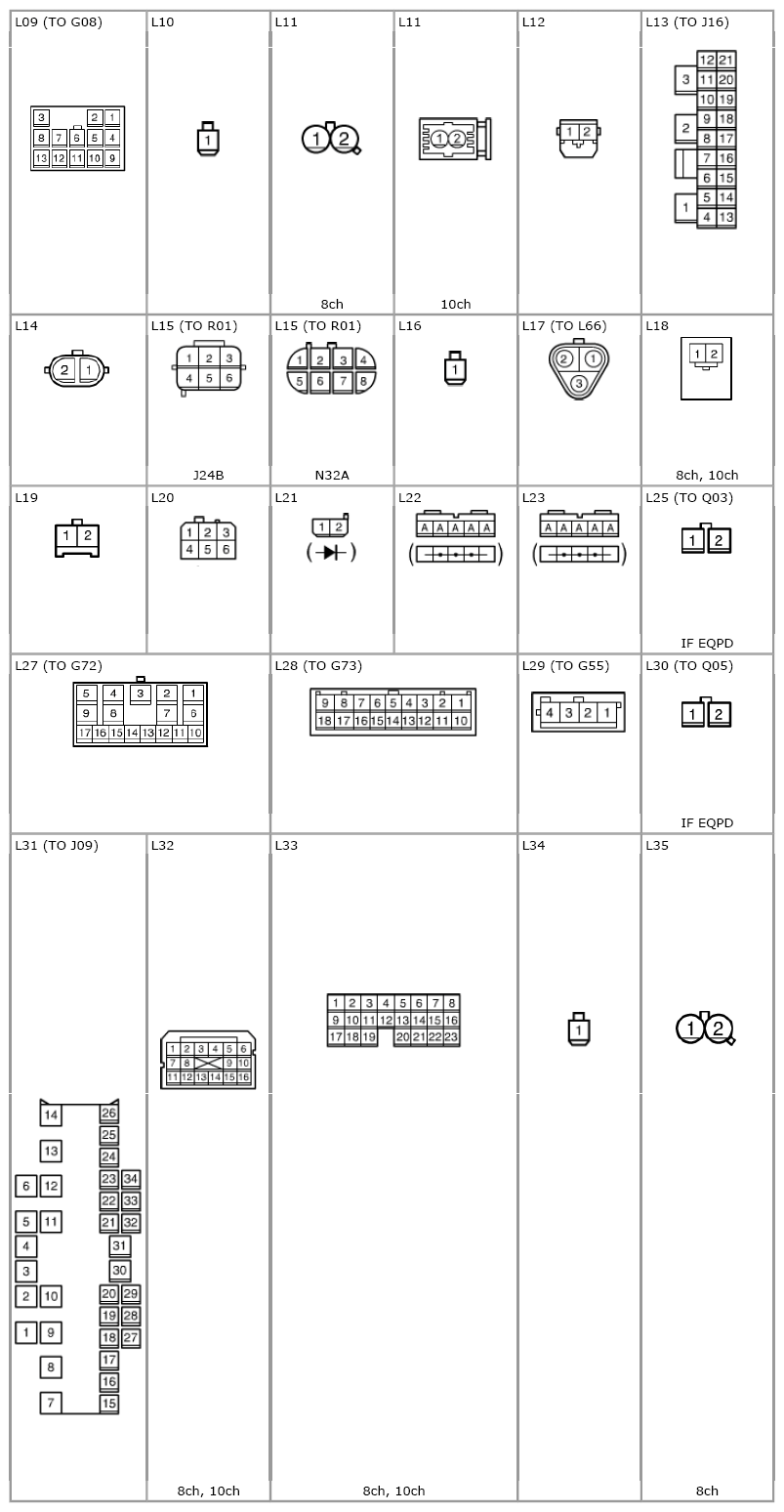

Fig 2: L Connector Chart (2 Of 3)
G06499737Courtesy of SUZUKI OF AMERICA CORP.

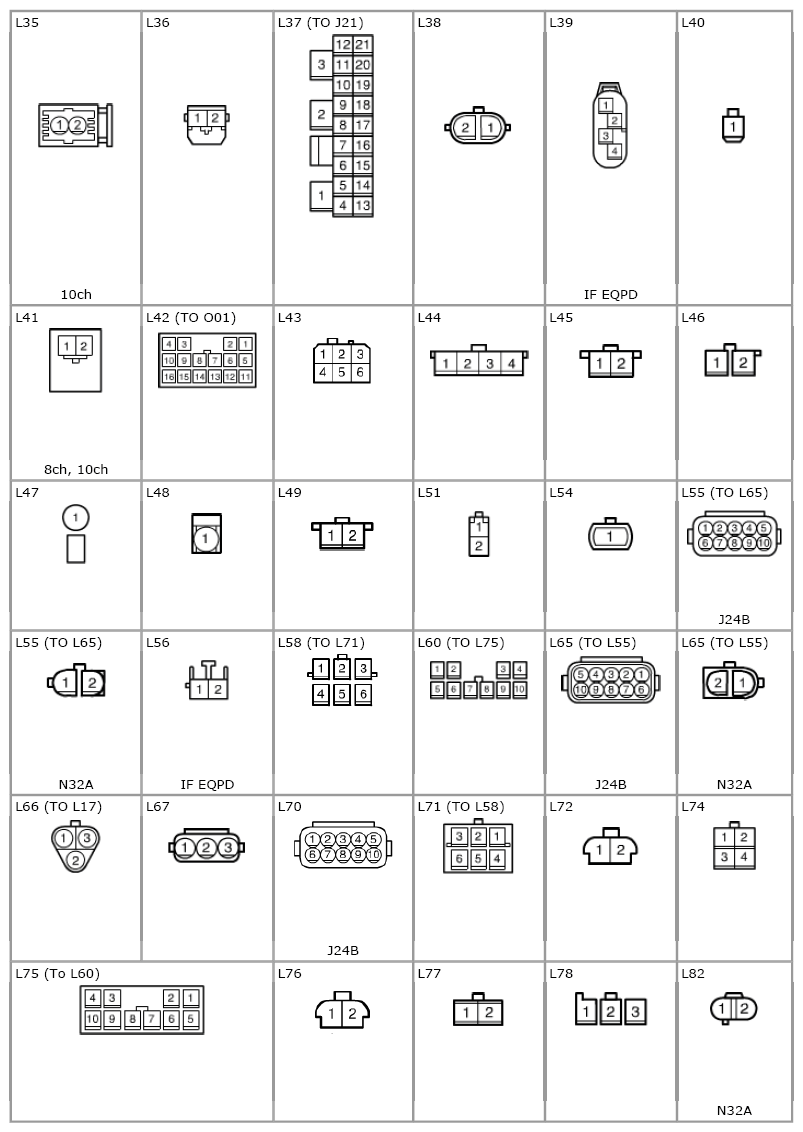

Fig 3: L Connector Chart (3 Of 3)
G06499738Courtesy of SUZUKI OF AMERICA CORP.
