G Connector

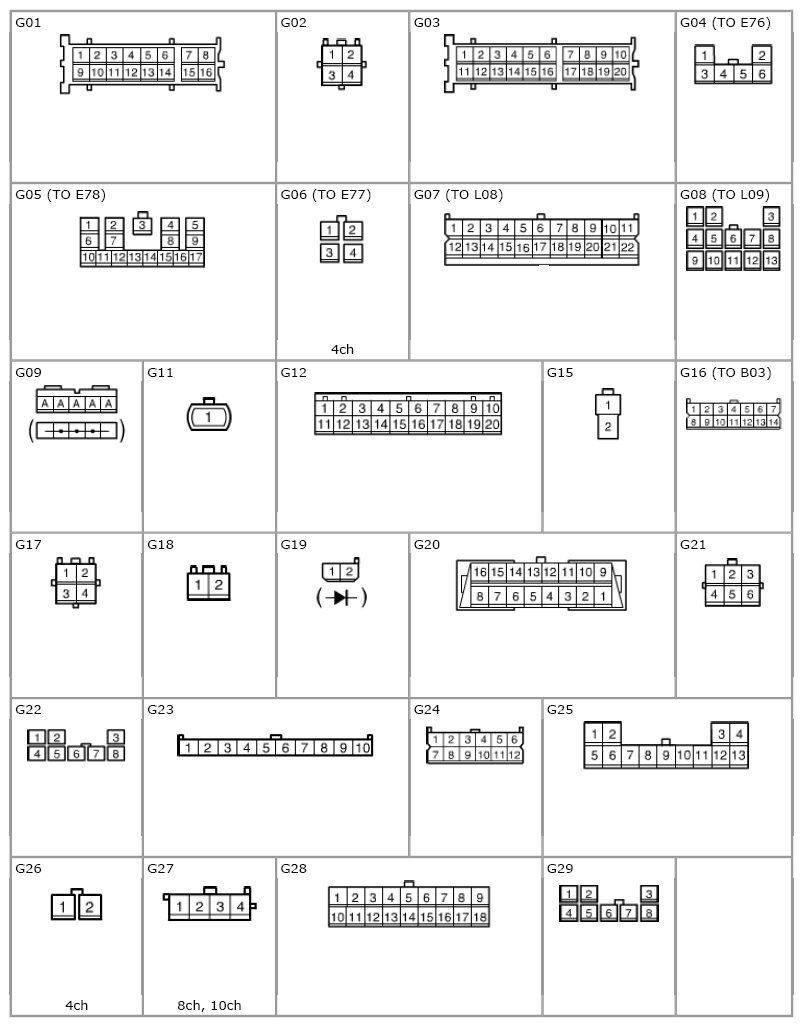

Fig 1: G Connector Chart (1 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

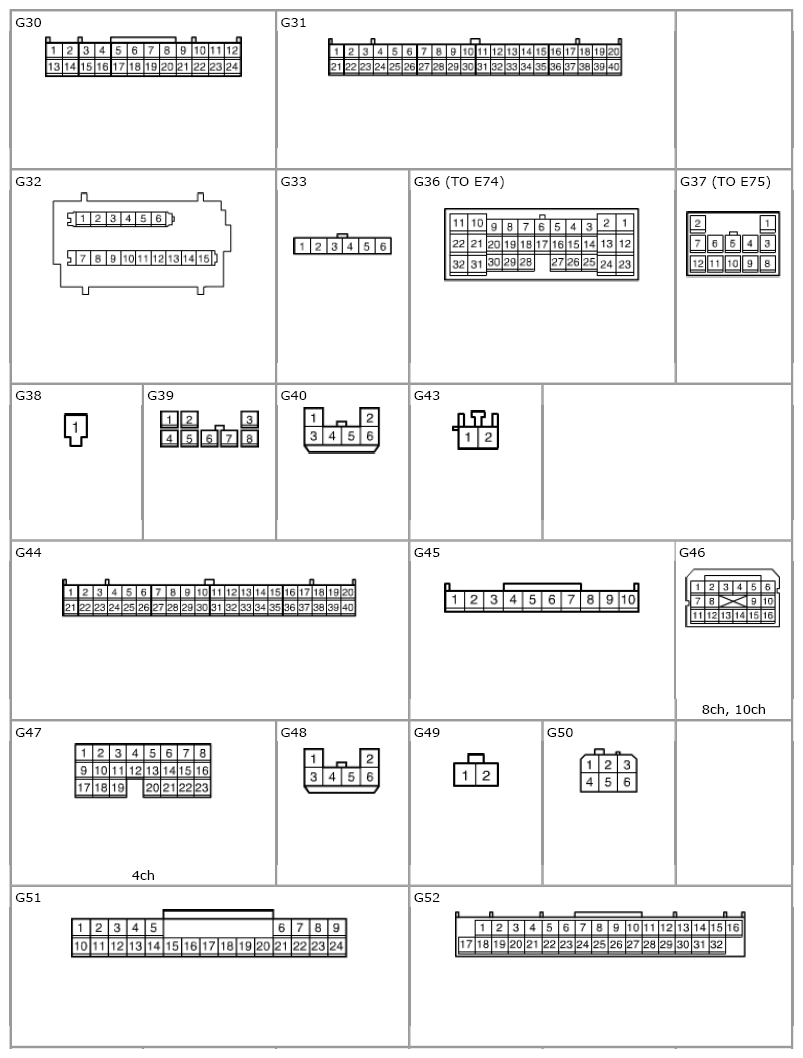

Fig 2: G Connector Chart (2 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

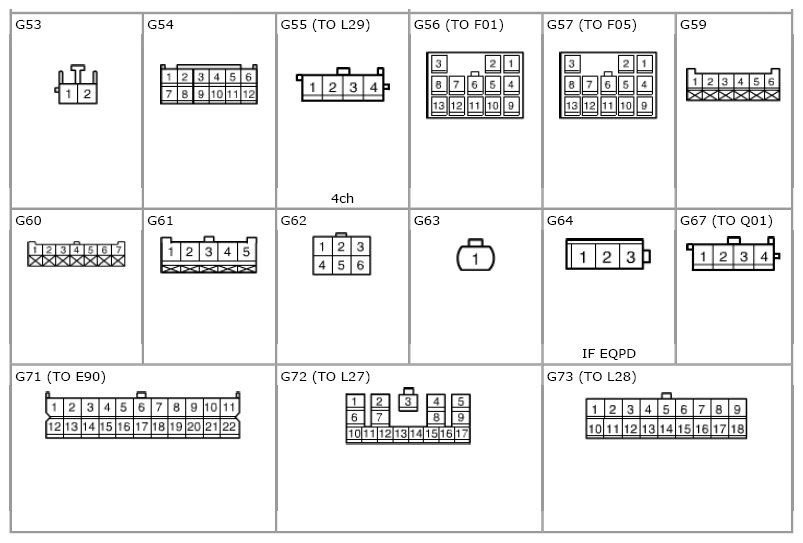

Fig 3: G Connector Chart (3 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

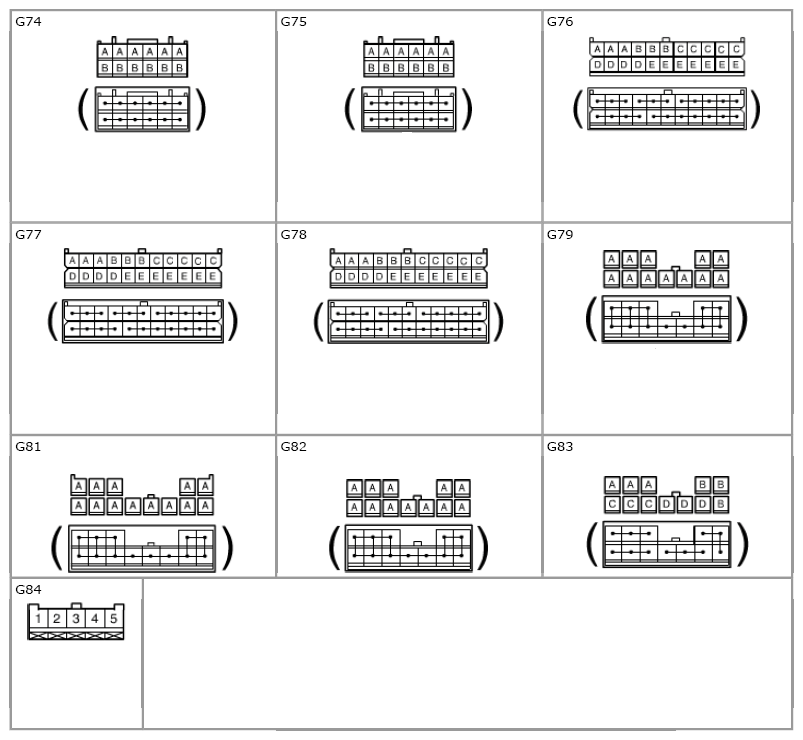

Fig 4: G Connector Chart (4 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.
