C Connector

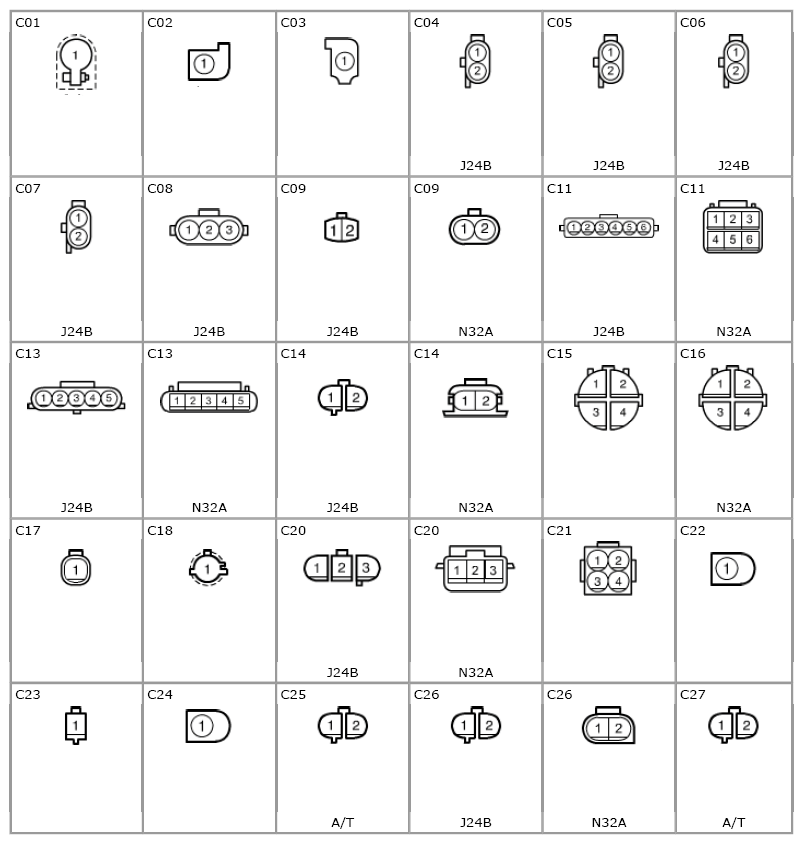

Fig 1: C Connector Chart (1 Of 3)
G06499720Courtesy of SUZUKI OF AMERICA CORP.

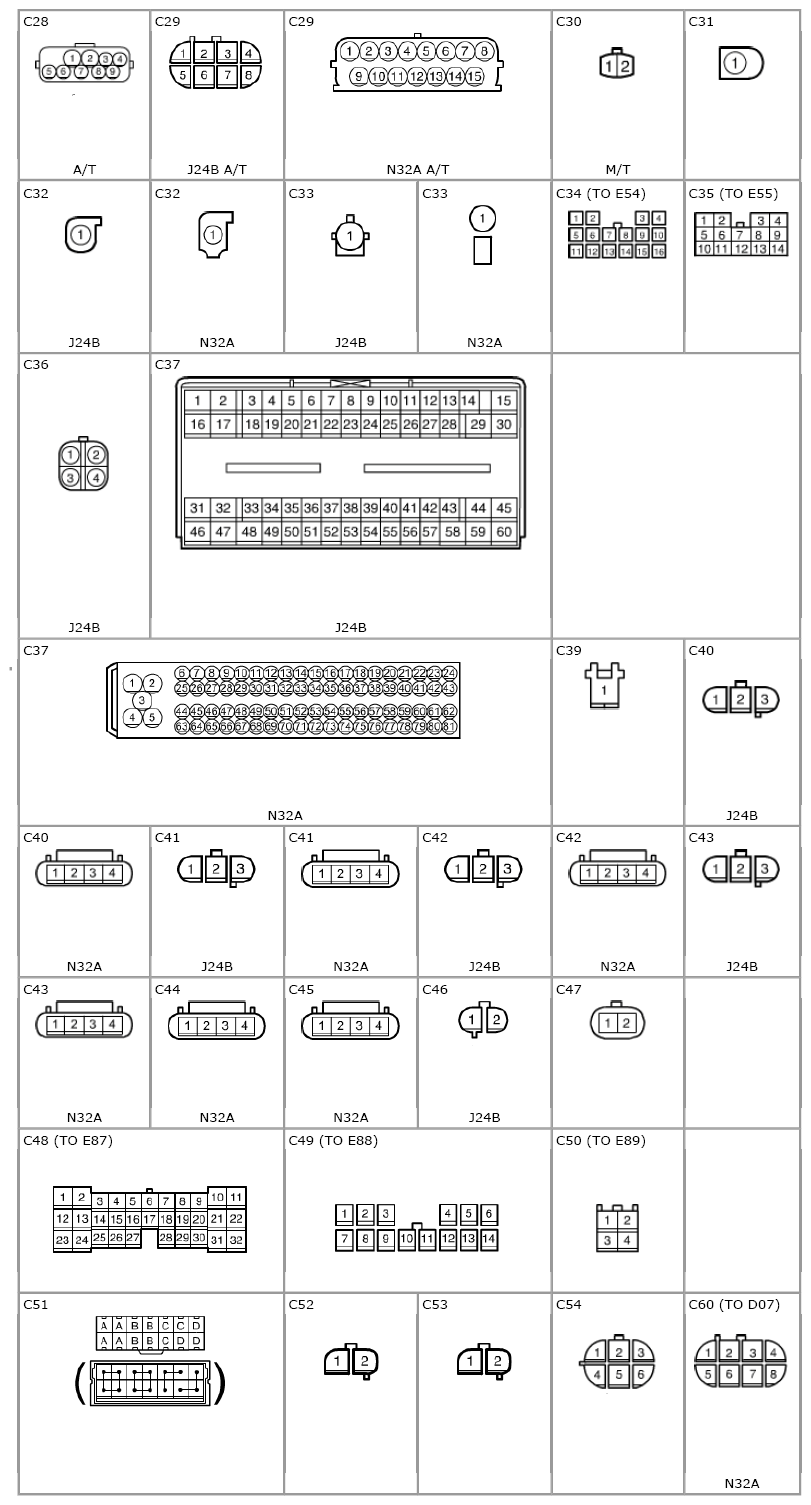

Fig 2: C Connector Chart (2 Of 3)
G06499721Courtesy of SUZUKI OF AMERICA CORP.

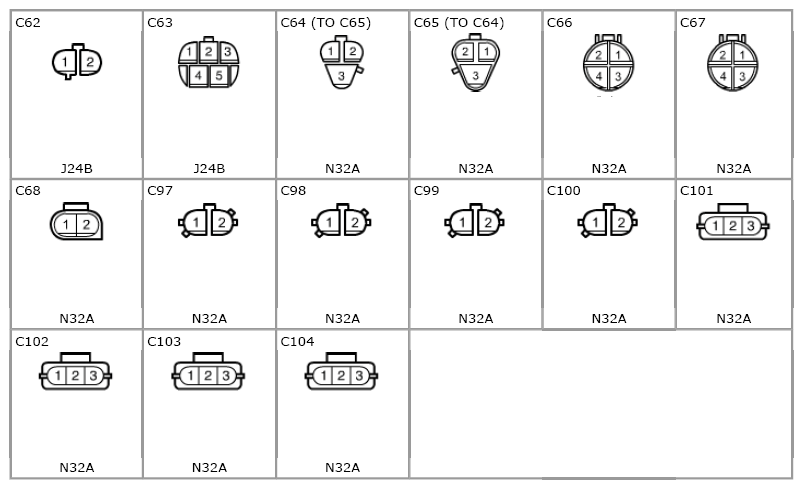

Fig 3: C Connector Chart (3 Of 3)
G06499722Courtesy of SUZUKI OF AMERICA CORP.
