Rear Differential Unit Components

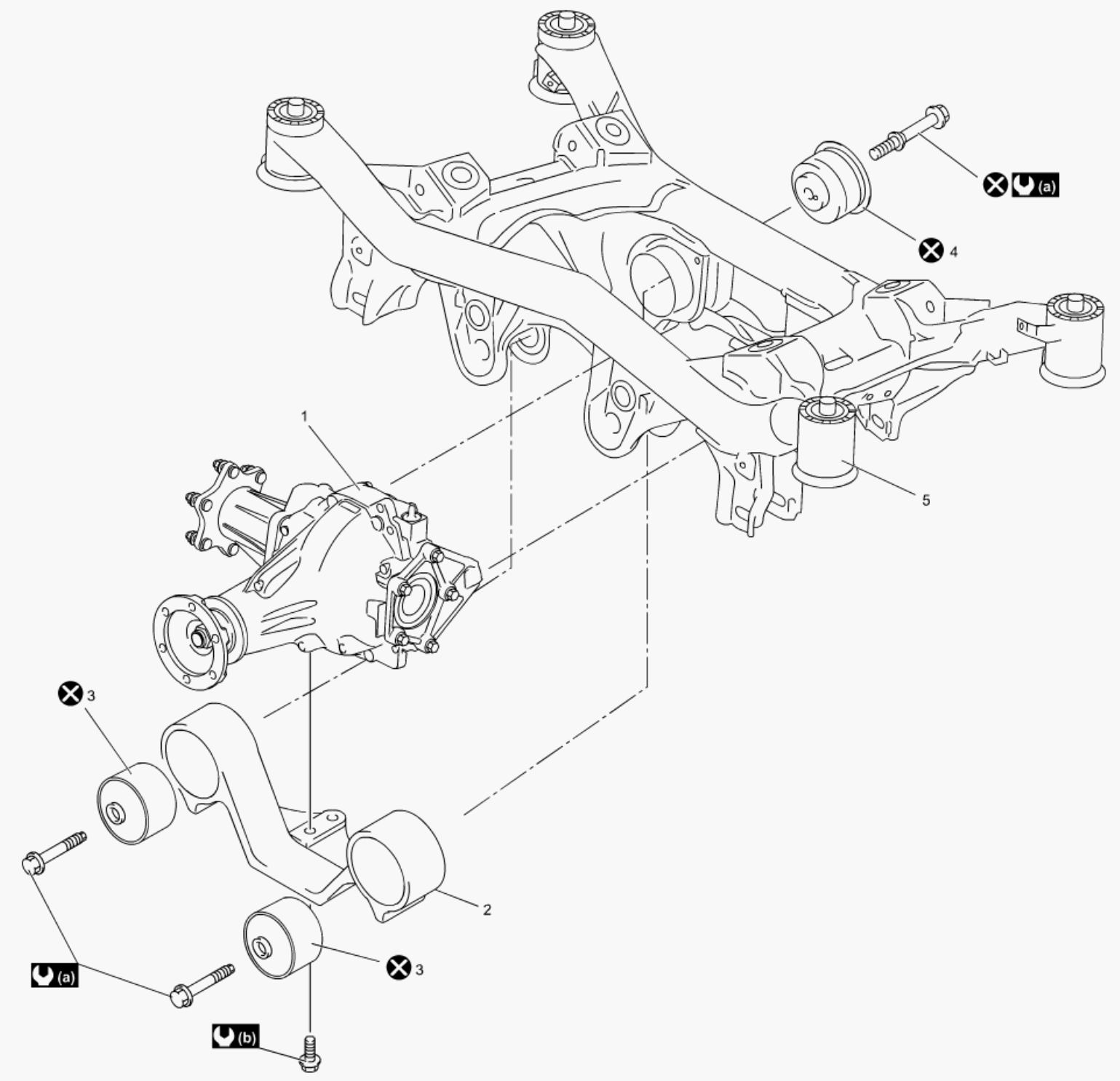

Fig 1: Identifying Rear Differential Unit Components
Courtesy of SUZUKI OF AMERICA CORP.

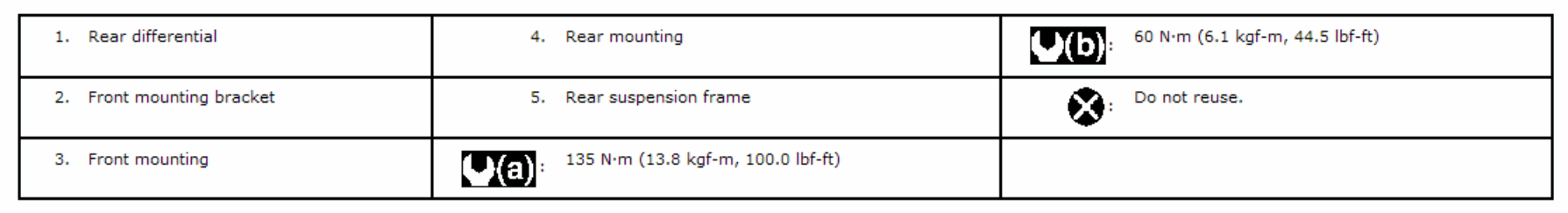

Fig 2: Rear Differential Unit Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
