Rear Differential Components

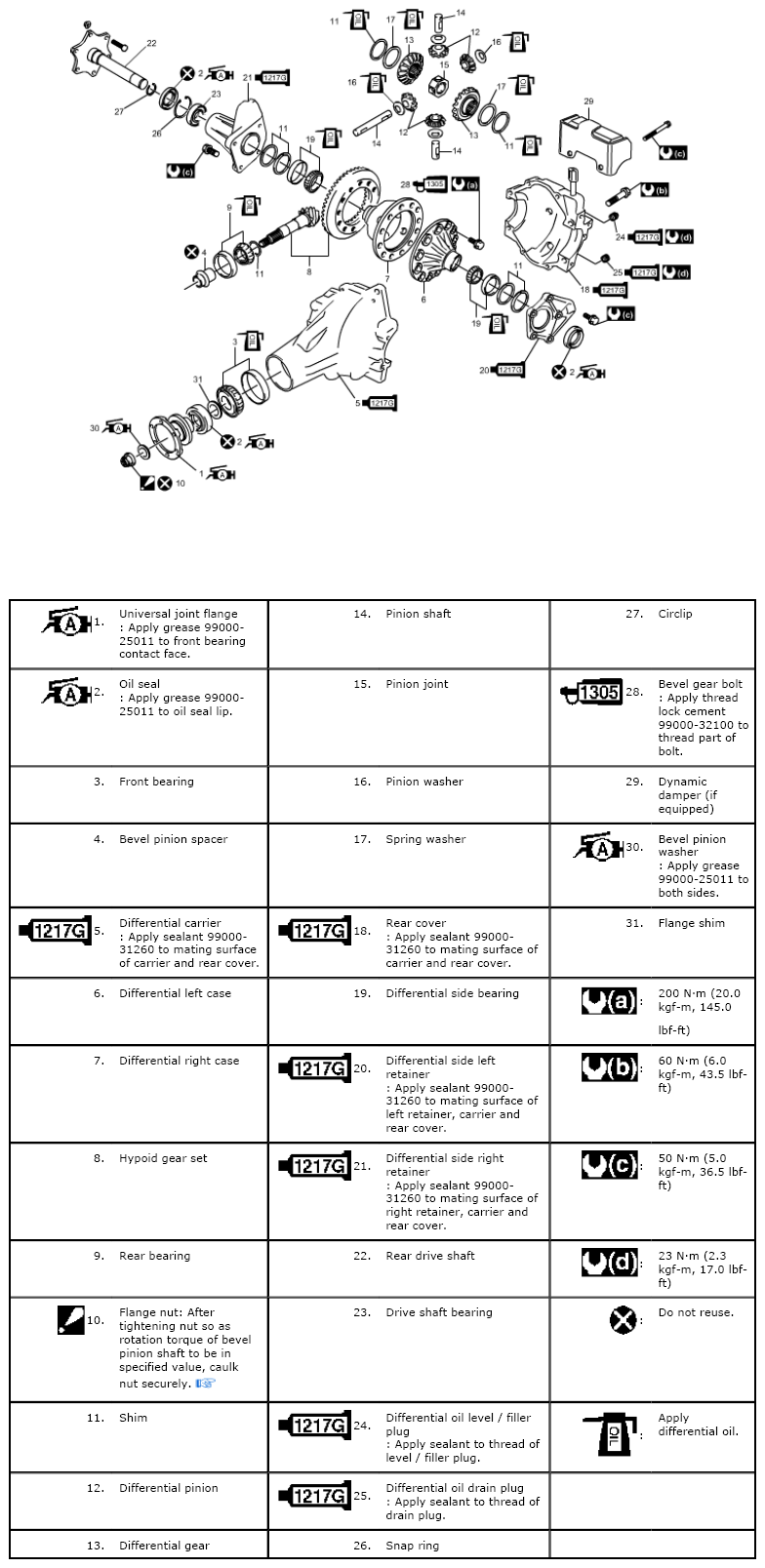

Fig 1: Rear Differential Replacement Components With Torque Specifications
G06493913Courtesy of SUZUKI OF AMERICA CORP.
