Front Differential Components

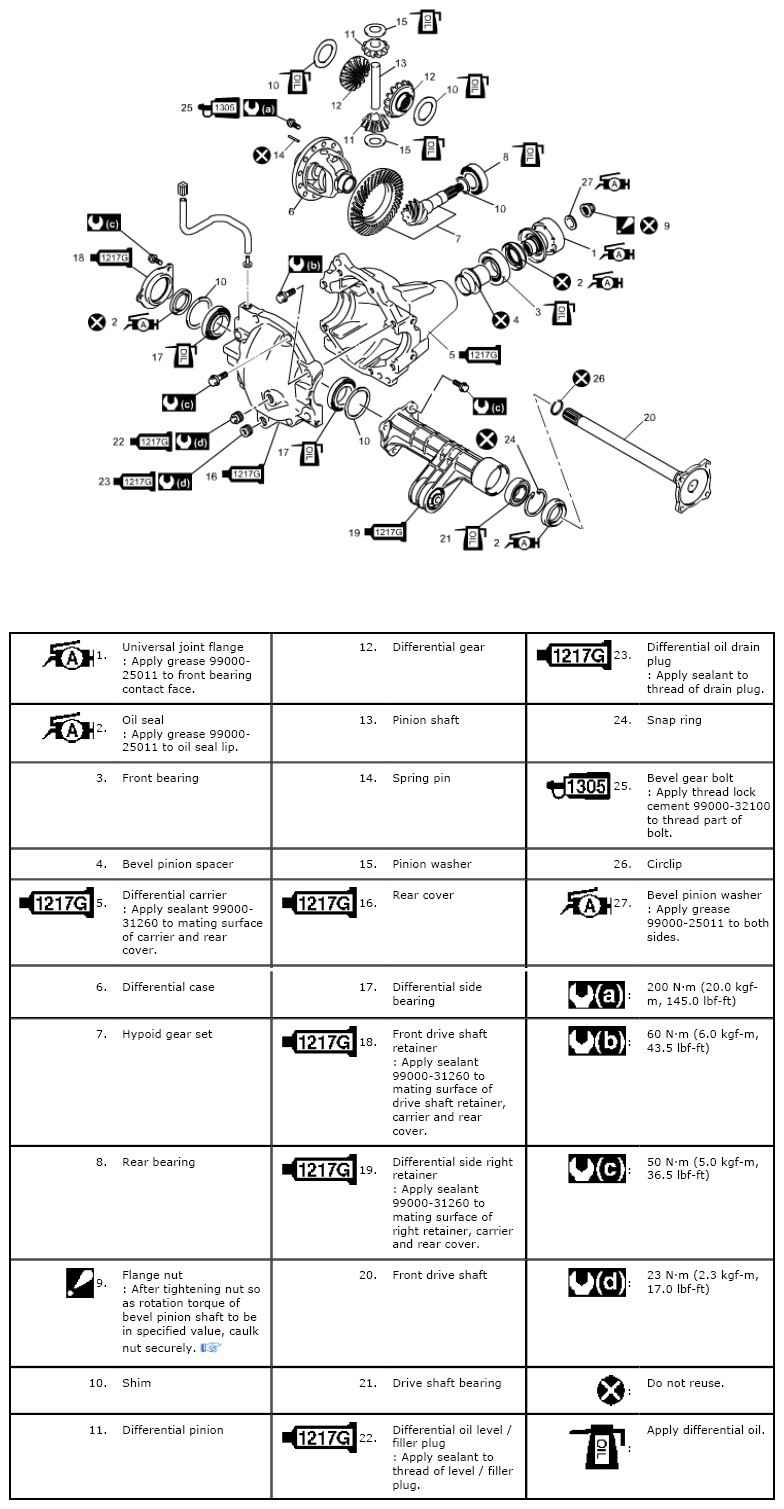

Fig 1: Front Differential Replacement Components With Torque Specifications
G06493826Courtesy of SUZUKI OF AMERICA CORP.
