Front Differential Assembly Disassembly and Reassembly: Disassembly

  1. Remove front differential right mounting (1) and rear mounting (2).
    Fig 1: Identifying Front Differential Right And Rear Mounting
    G06493827Courtesy of SUZUKI OF AMERICA CORP.
  2. Drive out front drive shaft (1) from front shaft retainer (2) using plastic hammer (3).
    Fig 2: Tapping Front Drive Shaft From Front Shaft Retainer
    G06493828Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove differential side right retainer and front drive shaft retainer, and then remove rear cover (1).
    Fig 3: Identifying Differential Cover
    G06493829Courtesy of SUZUKI OF AMERICA CORP.
  4. Disassembly front drive shaft retainer as follows, if necessary.
    1. Remove oil seal (1) from front drive shaft retainer using special tool.

      Special Tool

      (A): 09913-50121

      Fig 4: Removing Oil Seal From Front Drive Shaft Retainer
      G06493830Courtesy of SUZUKI OF AMERICA CORP.
    2. Remove snap ring (1) using snap ring plier.
      Fig 5: Removing Snap Ring
      G06493831Courtesy of SUZUKI OF AMERICA CORP.
    3. Drive out front drive shaft bearing using special tools.

      Special Tool

      (A): 09930-30104

      (B): 09941-64511

      Fig 6: Removing Front Drive Shaft Bearing
      G06493832Courtesy of SUZUKI OF AMERICA CORP.
  5. Support differential side right retainer (1) with soft jawed vise and remove oil seal (2) from differential side right retainer using special tool, if necessary.

    Special Tool

    (A): 09913-50121

    Fig 7: Removing Oil Seal From Differential Side Right Retainer
    G06493833Courtesy of SUZUKI OF AMERICA CORP.
  6. Take out differential assembly (1), outer race and shim all at once.
    Fig 8: Identifying Differential Assembly
    G06493834Courtesy of SUZUKI OF AMERICA CORP.
  7. Pull out differential side bearing (1) using special tools.

    Special Tool

    (A): 09913-65135

    (B): 09925-86010

    Fig 9: Pulling Differential Side Bearing
    G06493835Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove drive bevel gear (hypoid gear), differential gears, differential pinions and pinion shaft as follows.
    1. With aluminum plates (4) placed on vise first, grip differential case (3) with it and remove drive bevel gear (hypoid gear) (2) by removing its bolts (1).
    2. Fig 10: Identifying Differential Case With Bolts
      G06493836Courtesy of SUZUKI OF AMERICA CORP.
    3. Drive out spring pin (1) with special tool and hammer.

      Special Tool

      (A): 09922-85811

    4. Disassemble differential grease (5), pinions (3), washers (4), shims (6) and shaft (2) in differential case (7).

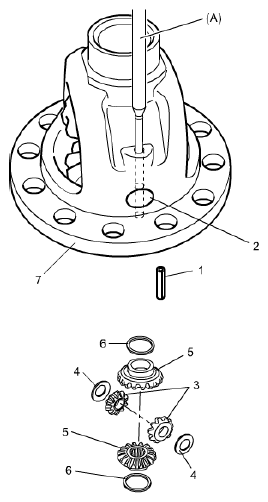

      Fig 11: Disassembling View Of Differential Grease
      G06493837Courtesy of SUZUKI OF AMERICA CORP.
  9. Remove drive bevel pinion (hypoid gear) assembly as follows.
    1. Hold joint flange with special tool and then remove flange nut and bevel pinion washer by using power wrench (4 - 10 magnification) (2).

      Special Tool

      (A): 09922-66021

      Fig 12: Removing Flange Nut And Bevel Pinion Washer
      G06493838Courtesy of SUZUKI OF AMERICA CORP.
    2. Make mating marks (1) on drive bevel pinion and companion flange.
      CAUTION: Do not make mating mark on the coupling surface of the flange.
    3. Remove flange (2) from drive bevel pinion. Use special tool if it is hard to remove.

      Special Tool

      (A): 09913-65135

      (B): 09925-88210

      Fig 13: Removing Flange From Drive Bevel Pinion
      G06493839Courtesy of SUZUKI OF AMERICA CORP.
    4. Remove drive bevel pinion (1) with rear bearing, shim and spacer from carrier.

      If it is hard to remove, screw an used nut (2) into drive bevel pinion and hammer (3) on that nut with a plastic hammer but never directly on drive bevel pinion.

      Fig 14: Tapping Drive Bevel Pinion
      G06493840Courtesy of SUZUKI OF AMERICA CORP.
    5. Remove drive bevel pinion rear bearing (2) by using bearing puller (3) and hydraulic press.
      CAUTION: To avoid rear bearing from being damaged, support it at flat side of bearing puller.
      Fig 15: Removing Drive Bevel Pinion Rear Bearing
      G06493841Courtesy of SUZUKI OF AMERICA CORP.
  10. Remove oil seal (1) using special tool.

    Special Tool

    (A): 09913-50121

    Fig 16: Removing Oil Seal
    G06493842Courtesy of SUZUKI OF AMERICA CORP.
  11. Using a hammer and brass bar (1), drive out front bearing outer race (2).
    Fig 17: Tapping Front Bearing Outer Race
    G06493843Courtesy of SUZUKI OF AMERICA CORP.
  12. Drive out rear bearing outer race (1) in the same manner as Step  11).
    Fig 18: Tapping Rear Bearing Outer Race
    G06493844Courtesy of SUZUKI OF AMERICA CORP.
