DTC C1073: Lost Communication With Yaw Rate/G Sensor Assembly: Wiring Diagram

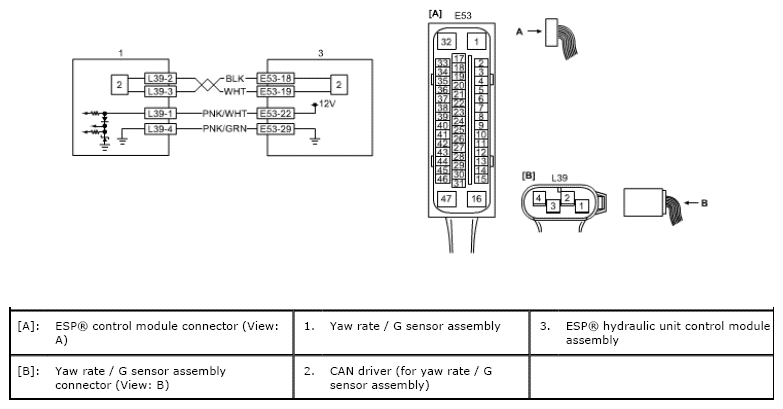

Fig 1: Lost Communication With Yaw Rate/G Sensor Assembly - Wiring Diagram
G06498511Courtesy of SUZUKI OF AMERICA CORP.
