DTC C1065: Brake Light Relay Circuit Failure: Wiring Diagram

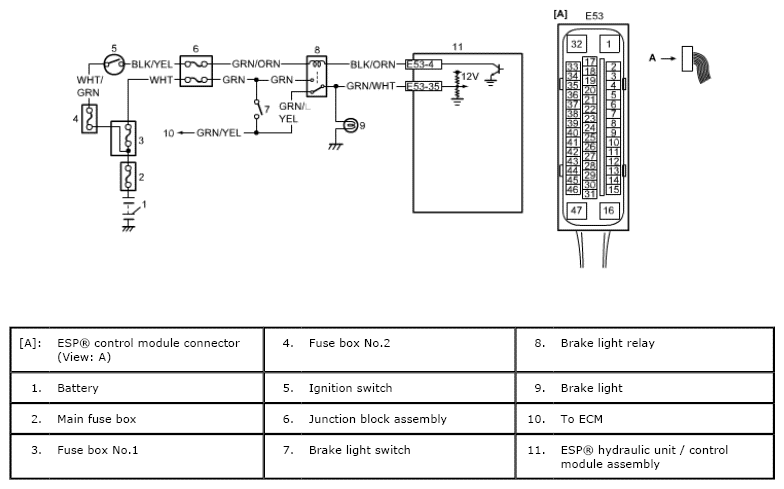

Fig 1: Brake Light Relay - Wiring Diagram
G06498510Courtesy of SUZUKI OF AMERICA CORP.
