DTC C1034: Yaw Rate/G Sensor Assembly Power Supply Failure: Wiring Diagram

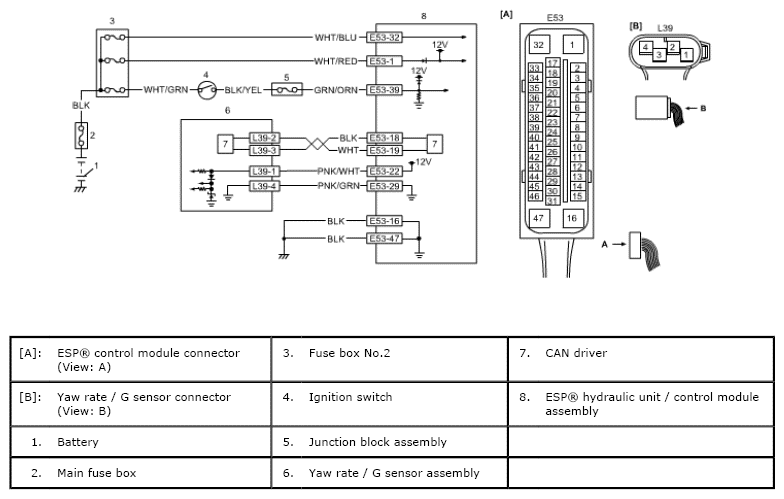

Fig 1: Yaw Rate/G Sensor Assembly Power Supply Failure - Wiring Diagram
G06498508Courtesy of SUZUKI OF AMERICA CORP.
