DTC C1018: Brake Fluid Level Switch Failure: Wiring Diagram

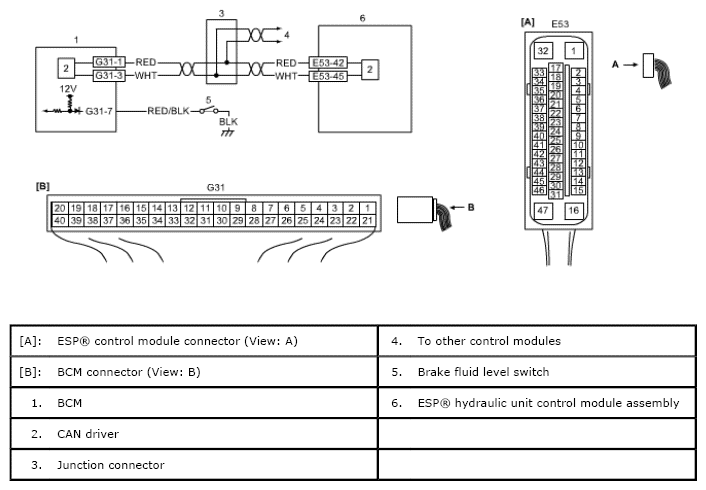

Fig 1: Brake Fluid Level Switch Failure - Wiring Diagram
G06498506Courtesy of SUZUKI OF AMERICA CORP.
