DTC C1016: Brake light Switch Circuit Failure: Wiring Diagram

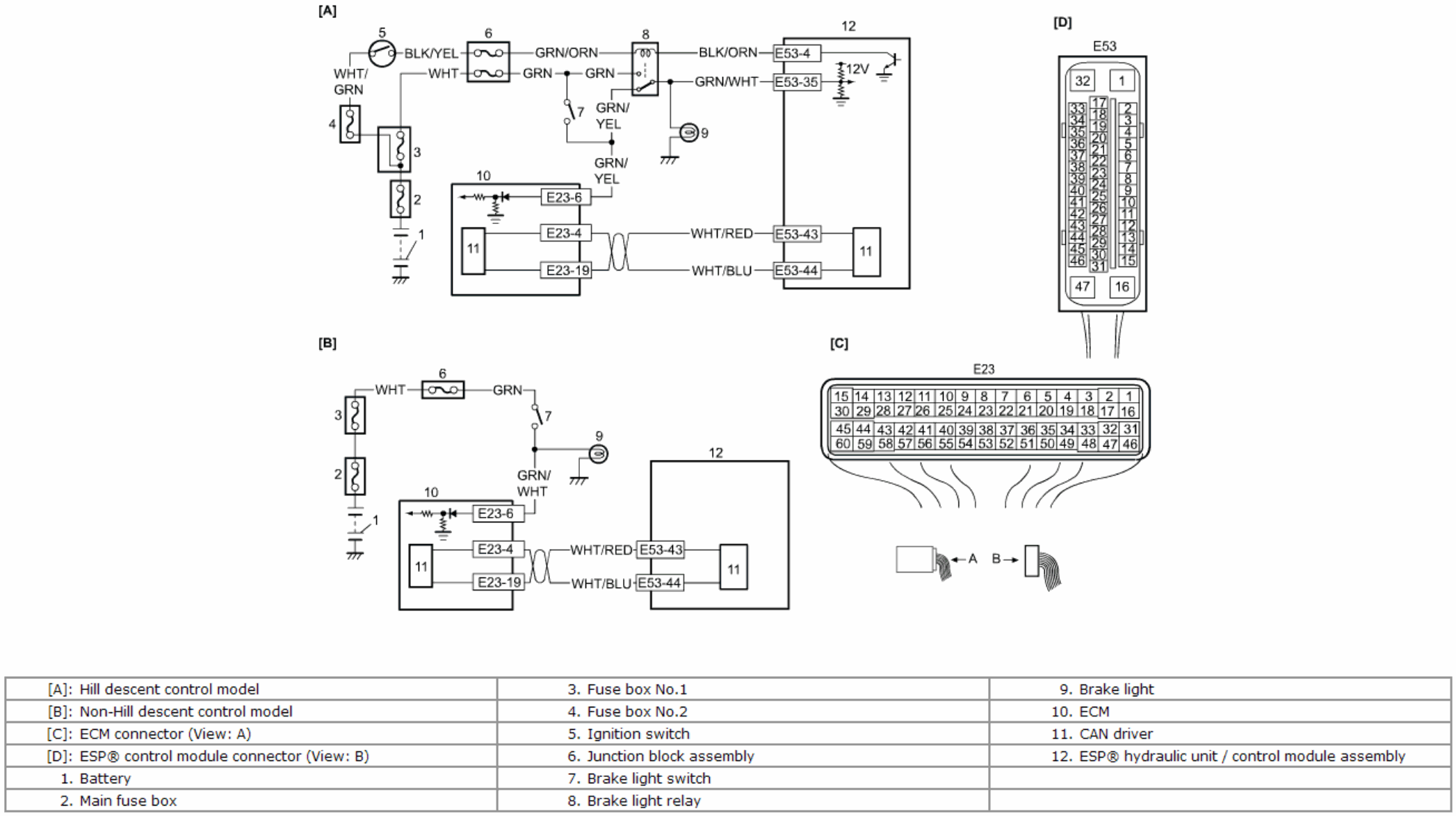

Fig 1: Brake Light Switch - Wiring Diagram
G00518893Courtesy of SUZUKI OF AMERICA CORP.
