Grand Vitara Base
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System (Abs) Diagnosis
>>
Schematic and Routing Diagram
>>
ABS Input/Output Block Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ABS Input/Output Block Diagram

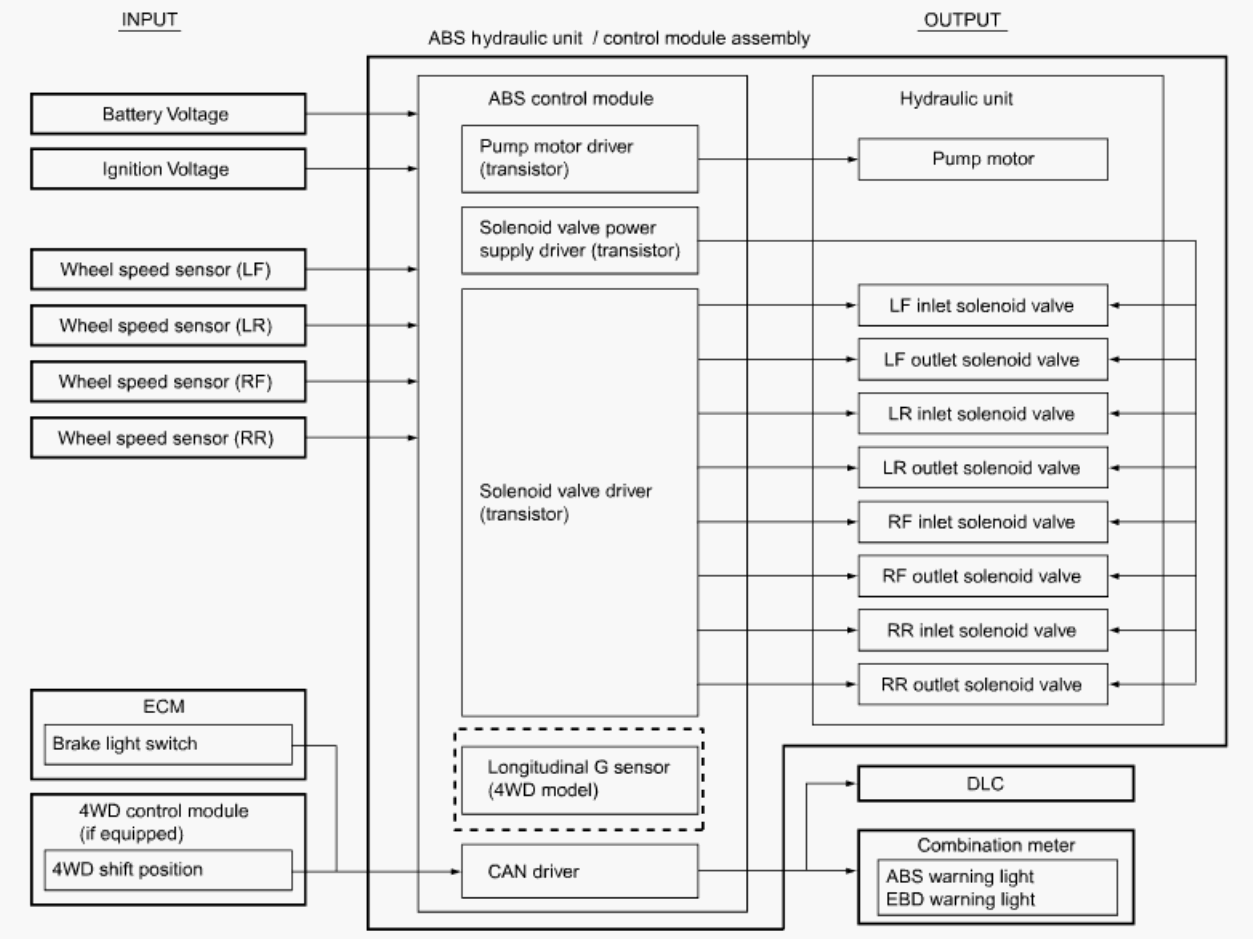

Fig 1: ABS Input/Output Block - System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
