Brake Back Plate Removal and Installation: Removal

  1. Hoist vehicle and remove rear wheel.
  2. Remove rear brake disc, see REAR BRAKE DISC REMOVAL AND INSTALLATION .
  3. Remove parking brake shoe, see PARKING BRAKE SHOE REMOVAL AND INSTALLATION .
  4. Remove drive shaft nut and rear wheel hub. See REAR WHEEL HUB ASSEMBLY REMOVAL AND INSTALLATION .
  5. Remove parking brake cable cap nut (1) and parking brake cable (2).
  6. Remove back plate (3).
  7. Remove parking brake anchor nut (4) from back plate.
    Fig 1: Identifying Parking Brake Cable Cap Nut And Parking Brake Cable
    G06500000Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove parking brake anchor bolt (1).
  9. Remove parking brake anchor (2) from back plate (3).

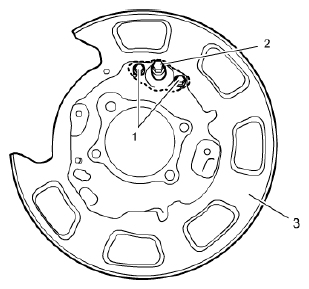

    Fig 2: Identifying Parking Brake Anchor Bolt And Back Plate
    G06500001Courtesy of SUZUKI OF AMERICA CORP.
