Front Disc Brake Components

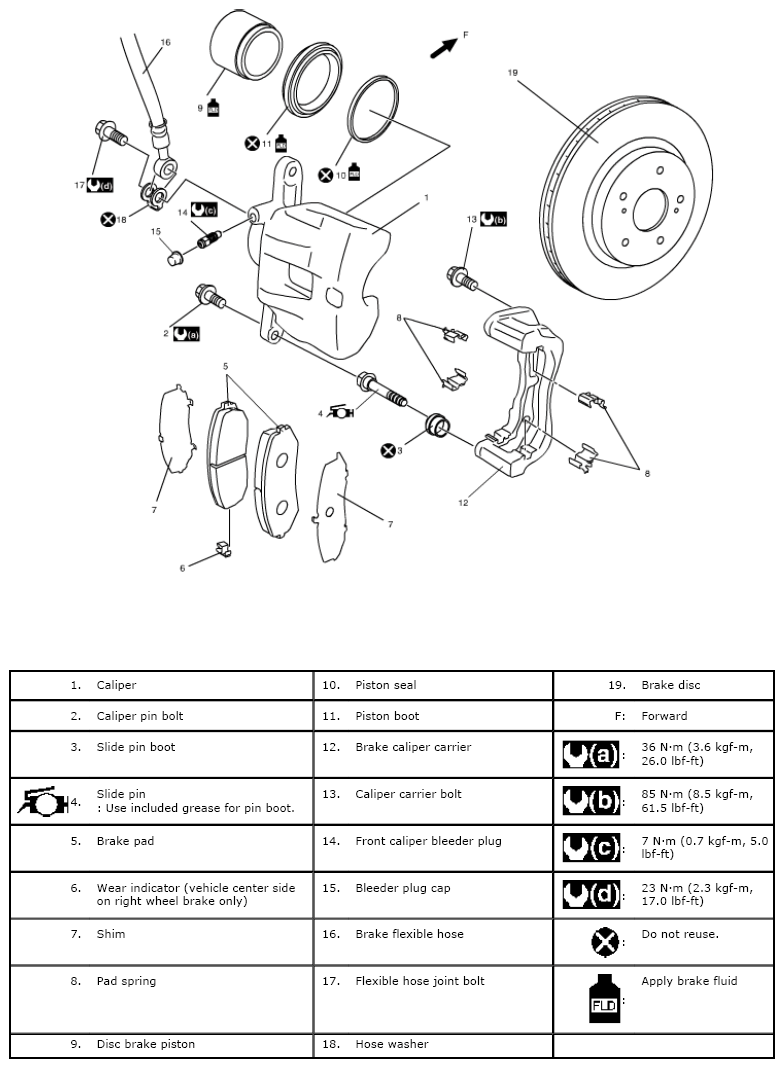

Fig 1: Front Disc Brake Replacement Components With Torque Specifications
G06498442Courtesy of SUZUKI OF AMERICA CORP.
