Master Cylinder Components

CAUTION: Never disassemble master cylinder. Disassembly will spoil its original function. If faulty condition is found, replace it with new one as an assembly.

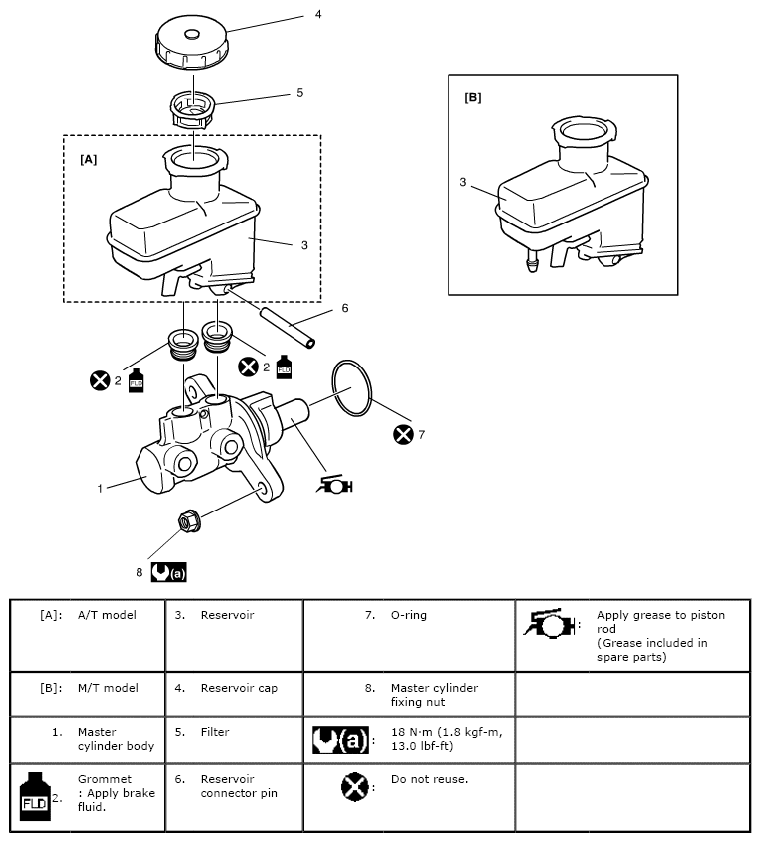

Fig 1: Master Cylinder Replacement Components With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
