Rear Door Glass Removal and Installation: Removal

Remove door trim screw cover (1).
Remove door trim screw (2).

Fig 1: Identifying Door Trim Screw
Courtesy of SUZUKI OF AMERICA CORP.
Remove door trim (1) as shown.

Fig 2: Removing Door Trim
Courtesy of SUZUKI OF AMERICA CORP.
Remove door sealing cover (1).

Fig 3: Identifying Door Sealing Cover
Courtesy of SUZUKI OF AMERICA CORP.

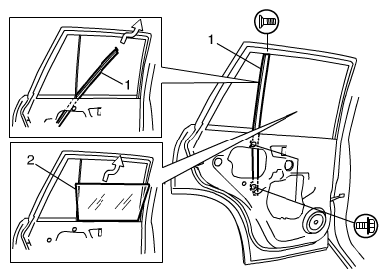

Detach rear part of glass run from door sash (1), and remove door sash (1).
Remove door glass (2) as shown.

Fig 4: Removing Door Glass
Courtesy of SUZUKI OF AMERICA CORP.
