Panel Clearance
Panel to panel distance

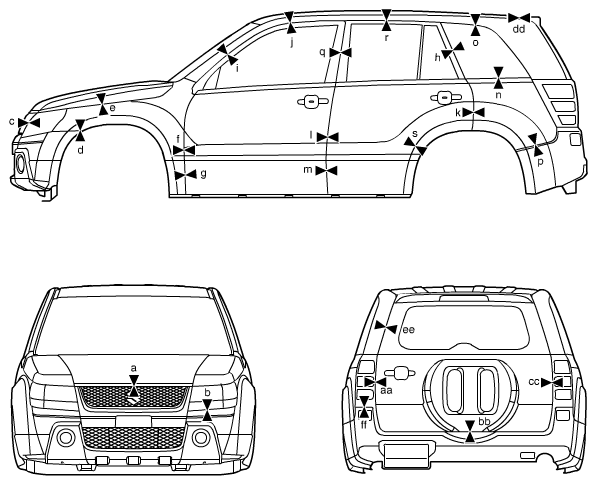

PANEL DISTANCE SPECIFICATIONS
| a: 8.2 - 10.2 mm (0.323 - 0.401 in.) | j: 4.0 - 6.0 mm (0.158 - 0.236 in.) | s: 16.8 - 18.8 mm (0.662 - 0.740 in.) |
| b: 1.0 - 3.0 mm (0.040 - 0.118 in.) | k: 3.0 - 5.0 mm (0.119 - 0.196 in.) | aa: 4.0 - 6.0 mm (0.158 - 0.236 in.) |
| c: 1.8 - 3.8 mm (0.070 - 0.149 in.) | l: 3.0 - 5.0 mm (0.119 - 0.196 in.) | bb: 6.3 - 8.3 mm (0.249 - 0.327 in.) |
| d: 0.5 - 1.0 mm (0.020 - 0.039 in.) | m: 4.0 - 6.0 mm (0.158 - 0.236 in.) | cc: 5.0 - 7.0 mm (0.197 - 0.275 in.) |
| e: 7.0 - 9.0 mm (0.275 - 0.354 in.) | n: 3.3 - 5.3 mm (0.120 - 0.208 in.) | dd: 6.2 - 8.2 mm (0.245 - 0.322 in.) |
| f: 3.0 - 5.0 mm (0.119 - 0.196 in.) | o: 1.8 - 3.8 mm (0.071 - 0.149 in.) | ee: 4.0 - 6.0 mm (0.158 - 0.236 in.) |
| g: 4.0 - 6.0 mm (0.158 - 0.236 in.) | p: 0.5 - 1.0 mm (0.020 - 0.039 in.) | ff: 1.0 - 3.0 mm (0.040 - 0.118 in.) |
| h: 6.0 - 8.0 mm (0.237 - 0.314 in.) | q: 3.0 - 5.0 mm (0.119 - 0.196 in.) | |
| i: 4.0 - 6.0 mm (0.158 - 0.236 in.) | r: 4.0 - 6.0 mm (0.158 - 0.236 in.) |
